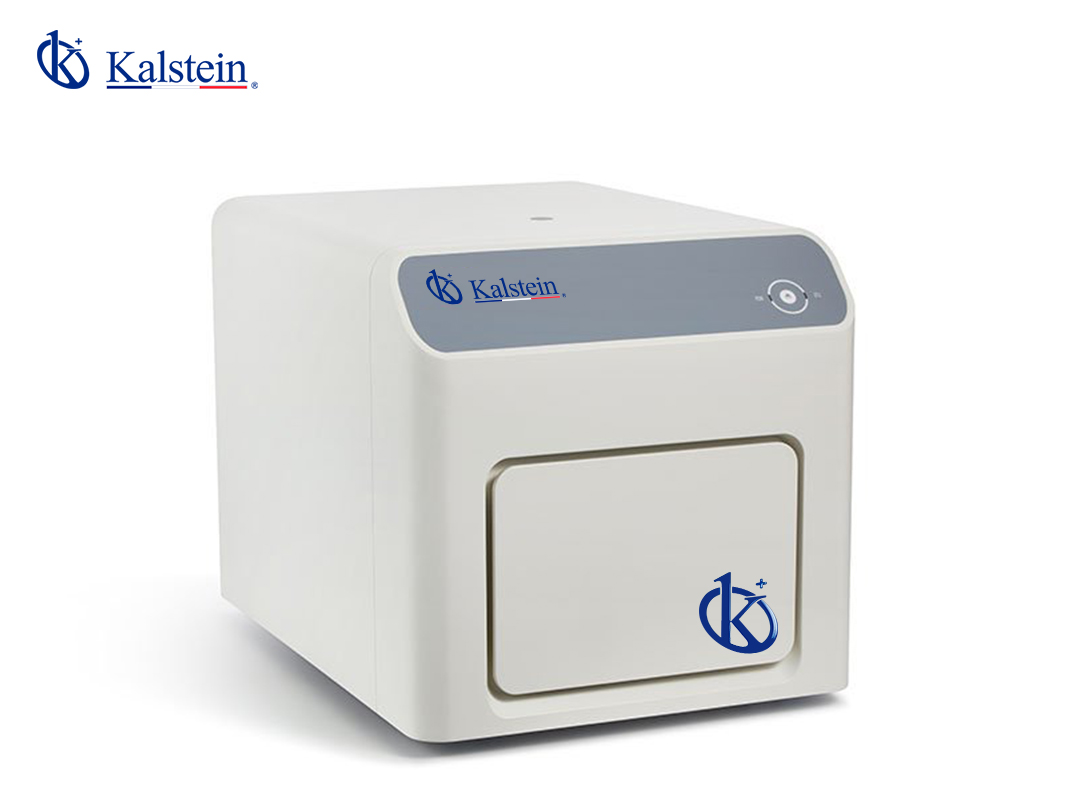

Understanding the Operating Principle and Scientific Foundation of the YR06248 Real-time PCR System
The YR06248 Real-time PCR System is an advanced tool designed for high precision and sensitivity in PCR analysis. Its innovative design incorporates signal capture technology and spectral separation to ensure excellent multi-color crosstalk correction and consistent temperature uniformity, crucial for detecting low quantities of genetic material. This article will explore the scientific foundations, operational principles, and technical specifications that make the YR06248 a versatile choice for laboratories requiring high capacity and flexibility.
Technical Specifications of the YR06248
| Specification | YR06248 | YR06249 |
|---|---|---|
| Model | YR06248 | YR06249 |
| Sample Capacity | 8 x 0.1mL PCR strip, 12 x 96 x 0.1mL individual tube, 0.1mL PCR Plate | 8 x 0.1mL PCR strip, 12 x 96 x 0.1mL individual tube, 0.1mL PCR Plate |
| Sample Volume | 10-50 μL | 10-50 μL |
| Heating and Cooling Method | Peltier | Peltier |
| Maximum Ramping Rate | 6.0° C/s | 6.0° C/s |
| Temperature Range | 4-100 °C | 4-100 °C |
| Temperature Accuracy | ± 0.2°C | ± 0.2°C |
| Temperature Uniformity | ±0.2°C @ 60°C, ±0.3°C @ 95°C | ±0.2°C @ 60°C, ±0.3°C @ 95°C |
| Optical Detecting System | SiPMT | SiPMT |
| Excitation Light | 4 pcs high-efficiency single color LED | 5 pcs high-efficiency single color LED |
| Detection Method | Time-resolved real-time scanning | Time-resolved real-time scanning |
| Detection Channels | 4 (optional 5 channels) | 4 (optional 5 channels) |
| Supported Dyes | FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ (Optional - Cy5.5 for 5-channel model) | FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ (Optional - Cy5.5 for 5-channel model) |
| Sensitivity | 1 copy gene | 1 copy gene |
| Dynamic Range | 10 orders of magnitude | 10 orders of magnitude |
Scientific Foundations of the YR06248
The YR06248 Real-time PCR System operates on the principles of polymerase chain reaction (PCR), a method used to amplify DNA sequences. The essential components include:
- DNA Template: The sample DNA that serves as the template for amplification.
- Primers: Short sequences of nucleotides that bind to the specific regions of the DNA template.
- DNA Polymerase: The enzyme responsible for synthesizing new DNA strands complementary to the template.
- Nucleotides: The building blocks required for DNA synthesis.
The PCR process involves repeated cycles of denaturation, annealing, and extension, which exponentially amplifies the target DNA. The YR06248 incorporates real-time monitoring of the amplification process through fluorescence detection, allowing for quantification of the DNA present in the sample.
Key Design Choices of the YR06248
The engineering behind the YR06248 has prioritized accuracy and efficiency. The incorporation of the Peltier heating and cooling technology allows for rapid temperature changes necessary for the PCR process.
Moreover, the system's multi-channel capability is tailored for multiplexing applications, enabling simultaneous analysis of multiple targets. This design choice aids in reducing the time and resources required for experiments while maximizing throughput.
Operational Guidelines for the YR06248
When operating the YR06248, it is critical to follow specific protocols to ensure accurate measurements and reliable results. Here are some best practices:
- Ensure that all reagents are compatible and of high quality to minimize errors.
- Regularly calibrate the optical detection system for optimal performance.
- Perform routine maintenance on the heating and cooling components to prevent malfunctions.
Benefits of the YR06248 in Laboratory Settings
The YR06248 offers several advantages that make it a valuable asset in laboratory environments:
- High Sensitivity: Capable of detecting down to a single copy of genetic material.
- Versatile Compatibility: Works with a wide range of dyes and probes, including FAM, VIC, ROX, and Cy5.
- Multiplexing Capability: Allows for the analysis of multiple targets simultaneously, enhancing efficiency.
Challenges and Considerations
While the YR06248 is highly efficient, there are potential challenges:
- Cost: The system may represent a significant investment for smaller laboratories.
- Space Requirements: Its footprint can be a concern in compact lab settings.
Frequently Asked Questions
What is the sensitivity of the YR06248 Real-time PCR System?
The YR06248 is capable of detecting as little as one copy of genetic material, making it ideal for low-concentration sample analysis.
Is the YR06248 compatible with other PCR reagents?
Yes, the YR06248 works with a wide variety of PCR reagents and dyes, including FAM, SYBR Green, VIC, ROX, and Cy5.
What maintenance is required for the YR06248?
Basic maintenance includes regular cleaning of the optical components and periodic calibration of the temperature control system, along with software updates for optimal performance.
How does multiplexing work in the YR06248?
Multiplexing in the YR06248 allows for the analysis of up to four targets simultaneously, increasing throughput and efficiency during PCR experiments.
What industries benefit from using the YR06248?
The YR06248 is widely used in genetic research, molecular diagnostics, pharmaceutical labs, and clinical applications due to its versatility and high performance.
