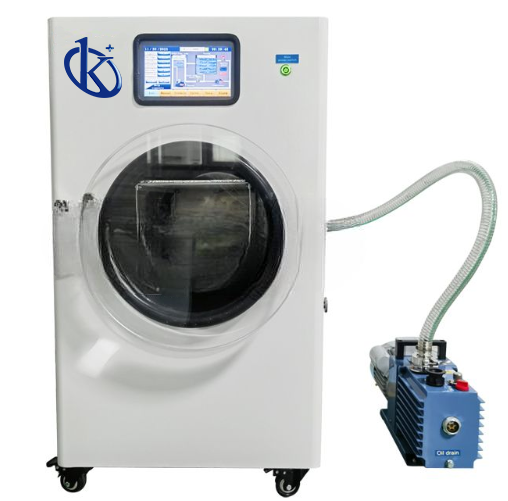

Understanding the Principle of Operation and Scientific Foundations of the YR05984 Food Freeze Dryer
The YR05984 Food Freeze Dryer is engineered to effectively eliminate moisture from products while preserving their quality. This article aims to delve into the scientific principles and operational fundamentals underlying the YR05984, explaining the process of freeze drying and the critical components that contribute to its functioning.
What is Freeze Drying?
Freeze drying, or lyophilization, is a method that removes water from a product after it has been frozen and placed under vacuum. This process allows ice to change directly from solid to vapor without passing through a liquid phase, ensuring minimal alteration to the product’s structure and properties. The freeze drying process can be divided into three main interdependent phases: freezing, primary drying (sublimation), and secondary drying (desorption).
Phase 1: Freezing
The initial phase in the freeze drying process involves freezing the product completely. This is crucial because the faster the freezing process, the smaller the ice crystals that are formed. Smaller ice crystals prevent damage to the cellular structure of the product, which is particularly important for food items and biological samples. The YR05984 is designed with efficient cooling mechanisms to achieve optimal freezing times.
Phase 2: Sublimation (Primary Drying)
Once the product is frozen, sublimation begins during the primary drying phase. In this phase, the system operates under vacuum, which significantly lowers the pressure and allows ice to transition directly to vapor. The YR05984 incorporates advanced vacuum technology to maintain the necessary low-pressure environment, facilitating efficient moisture removal while preserving the product’s integrity.
Phase 3: Desorption (Secondary Drying)
The last phase, desorption, removes residual moisture that remains in the product after sublimation. This phase is critical to ensure that the final product has a low moisture content and achieves the desired shelf stability. The YR05984 is equipped with features that allow for precise control over temperature and pressure during this phase, ensuring thorough drying.
Key Design Choices in the YR05984
The design of the YR05984 is driven by the need to optimize the freeze drying process while ensuring user-friendliness and efficiency. Key design choices include:
- Touch Screen Operation: The YR05984 features an intuitive touch screen interface that makes it easy to program and monitor the freeze drying process.
- High-Quality Components: The use of imported, high-quality components ensures reliable performance with low noise levels and high efficiency.
- Compact Size: The compact design allows for easy integration into various laboratory spaces without taking up excessive room.
Technical Specifications of the YR05984
| Specification | Details |
|---|---|
| Model | YR05984 |
| Total Size (WxDxH) | 700*860*930mm |
| Energy Consumption | 1550W |
| Power Supply | 220V 50HZ |
| Tray Area | 0.4m2 |
| Single Batch Weight | 4~6kg |
| Tray Size | 200*420mm |
| Number of Trays | 4pcs |
| Spacing Between Trays | 45mm |
| Gross Weight | 150kg |
| Condenser Temperature | ≤-50°C |
| Drying Temperature | -25°C ~+60°C |
| Vacuum Level | <15Pa |
Frequently Asked Questions
What are the main applications of the YR05984 Food Freeze Dryer?
The YR05984 Food Freeze Dryer is widely used across various sectors, including food preservation, pharmaceuticals, and laboratory research. It is ideal for preserving the quality of sensitive materials by removing moisture without significant temperature fluctuations.
How does the YR05984 maintain low temperatures during the freeze drying process?
The YR05984 utilizes advanced cooling technologies that allow it to reach and maintain very low temperatures necessary for effective freezing. The refrigeration system is designed to be energy-efficient while ensuring rapid temperature drops.
What safety features are included in the YR05984?
Safety features of the YR05984 include automatic shut-off mechanisms, overheat protection, and a user-friendly interface that minimizes user error. The equipment is built to comply with strict safety standards, ensuring safe operation in laboratory environments.
How do I perform maintenance on the YR05984?
Regular maintenance of the YR05984 is crucial for optimal performance. This includes routine cleaning of the trays, checking vacuum seals for wear, and ensuring that the cooling system is free of obstructions. Detailed maintenance guidelines can be found in the user manual.
What types of materials can be processed in the YR05984?
The YR05984 is versatile and can process a wide range of materials, including fruits, vegetables, pharmaceuticals, and biological samples. It is important to ensure that the materials are compatible with freeze drying and do not contain excessive fats or oils that could interfere with the process.
Can the YR05984 be used for bulk freeze drying?
Yes, the YR05984 is suitable for bulk freeze drying, allowing users to process multiple trays of products simultaneously. Its design accommodates substantial quantities while maintaining efficient drying times.
Where can I find replacement parts for the YR05984?
Replacement parts for the YR05984 can be obtained through certified suppliers or directly through the manufacturer. It is recommended to use genuine parts to ensure reliability and compatibility.
