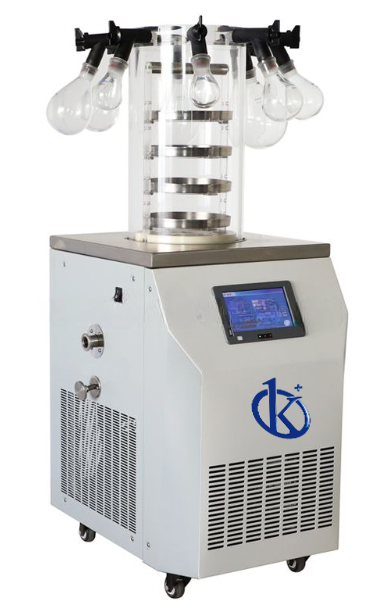

Understanding the Scientific Principles Behind the YR05193 Freeze Dryer Operation
The YR05193 vertical laboratory freeze dryer is a sophisticated piece of equipment widely used in various scientific fields, including medicine, pharmacy, biological research, chemistry, and food preservation. Understanding the operational principles and scientific fundamentals behind this equipment is crucial for effective use and optimal outcomes in laboratory settings.
Principle of Operation: The Science of Freeze Drying
Freeze drying, or lyophilization, is a dehydration process used to preserve a variety of materials, especially those sensitive to heat. The principle involves freezing the material, reducing pressure, and removing the ice by sublimation. The YR05193 employs this principle effectively through several stages:
- Freezing: The material is subjected to sub-zero temperatures in a controlled environment, enabling the formation of ice crystals.
- Sublimation: By lowering the pressure, ice sublimates directly into vapor without passing through the liquid phase, effectively removing moisture.
- Desorption: The final stage involves further reducing pressure to ensure any residual moisture is eliminated as vapor.
This process not only preserves the material's structural integrity but also retains its biochemical characteristics, making freeze-dried products easy to store and rehydrate.
Technical Specifications of the YR05193
| Specification | Details |
|---|---|
| Model | YR05193 |
| Lyophilized Area | 0.08m² |
| Tray Material | Ф180mm, 3 layers |
| Cooling Trap Temperature | ≤ -56°C (no load), optional ≤ -80°C (no load) |
| Water Capture Capacity | 3-4kg/24h |
| Ultimate Vacuum | ≤ 5Pa (no load) |
| Power | 970 W |
| Weight | 62 KG |
| Dimensions | 580×500×1260mm |
Design Choices and Scientific Justifications
The YR05193 has been designed with specific features that enhance its operational efficiency and reliability:
- Touchscreen Interface: The 7-inch touchscreen allows for easy navigation and operation, enabling users to monitor and adjust settings effectively.
- Flexible Vacuum Switching: This feature allows the user to switch between vacuum units (Pa, mBar, etc.), providing versatility depending on the application needs.
- Stainless Steel Components: The use of stainless steel for the operation table and cold trap not only ensures durability but also facilitates easy cleaning and maintenance, crucial for maintaining sterile conditions in laboratories.
Each design choice reflects a deep understanding of the operational requirements and challenges faced in laboratory settings, ensuring the YR05193 meets the rigorous demands of modern scientific research.
Applications of the YR05193 in Different Fields
The versatility of the YR05193 makes it suitable for various applications:
Clinical Laboratories
In clinical settings, the YR05193 is used to preserve biological samples, including blood products and tissues, ensuring their viability for future testing.
Pharmaceuticals
Pharmaceutical companies utilize the YR05193 to freeze-dry drugs, enhancing their shelf life and ensuring their efficacy when rehydrated.
Food Preservation
The food industry employs this freeze dryer to remove moisture from fruits, vegetables, and meals, allowing for long-term storage without sacrificing nutritional value.
Biological Research
Researchers use the YR05193 to preserve microbial cultures and other sensitive biological specimens, facilitating ongoing studies and experiments.
Common Troubleshooting and Maintenance Tips
To ensure the continued operation of the YR05193, users should be aware of common issues and corresponding solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check power connection and outlet; replace power cord if necessary. |
| Error Code E-03 | Vacuum pressure is too low | Inspect for vacuum leaks and ensure the system is properly sealed. |
| Inconsistent readings | Sensor malfunction | Calibrate sensors and check for any obstructions. |
Regular maintenance and addressing issues promptly can significantly extend the lifecycle of the YR05193.
Frequently Asked Questions
What types of samples can be processed using the YR05193 freeze dryer?
The YR05193 is designed to process a wide range of samples, including biological materials, pharmaceuticals, and food products, ensuring preservation without compromising quality.
How does the YR05193 maintain its low temperature during the freeze-drying process?
The YR05193 utilizes a sophisticated refrigeration system that allows it to maintain low temperatures necessary for effective freeze-drying, crucial for preserving sample integrity.
What maintenance is required for the YR05193 freeze dryer?
Regular maintenance includes checking the vacuum seals, cleaning the cold trap, and calibrating sensors to ensure optimal performance and longevity of the equipment.
Can the YR05193 be used for large batch sizes?
While the YR05193 is suitable for various batch sizes, users should consider the specific dimensions and capacity when planning to process large volumes.
What safety features are included in the YR05193 model?
The YR05193 is equipped with a warning system during operation, ensuring users are alerted to any issues that may arise, enhancing safety in laboratory environments.
