Biological Microscope YR0242-M // YR0242-T
Biological Microscope YR0242-M // YR0242-T — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

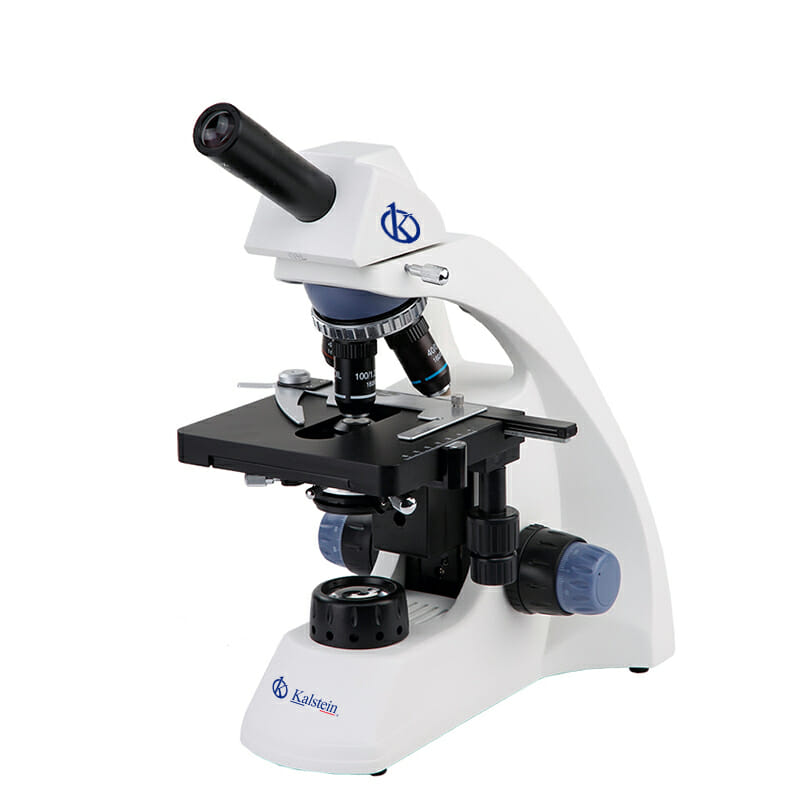

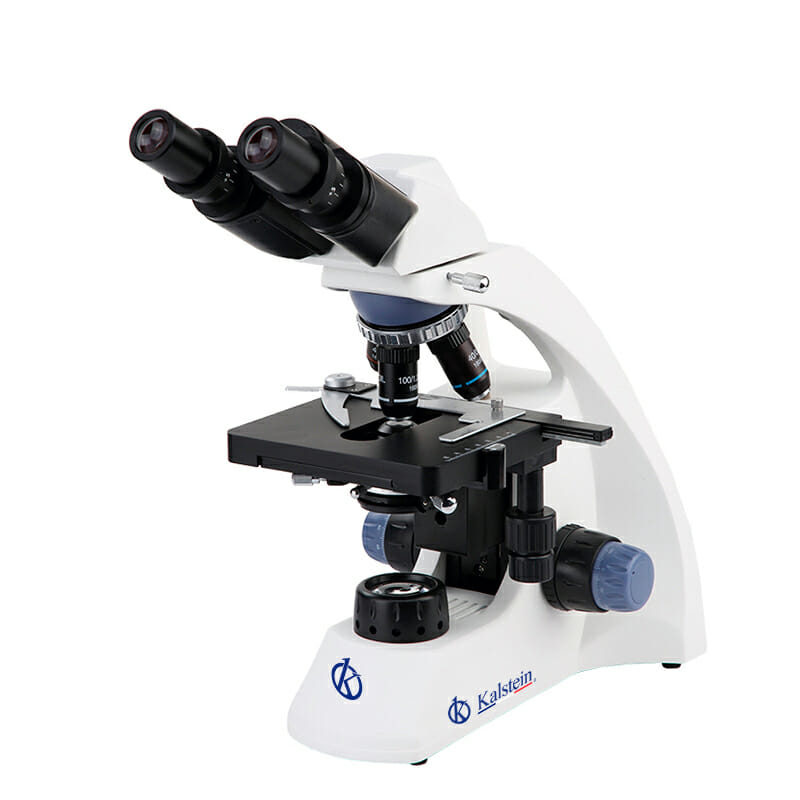

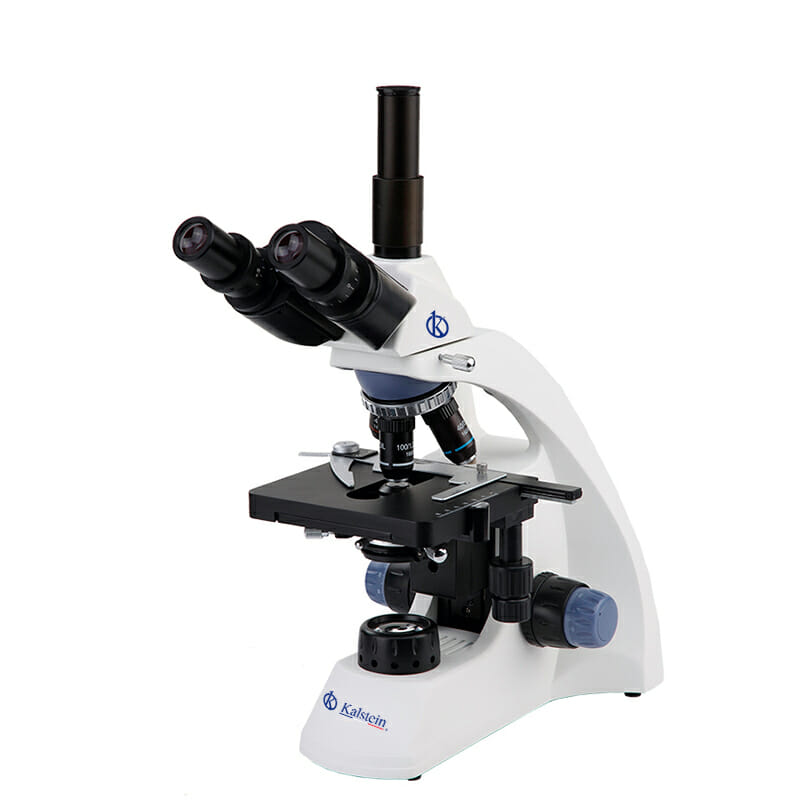

The Biological Microscope YR0242-M // YR0242-T is a versatile tool designed for detailed biological examination. This microscope offers multiple viewing head options, including monocular, binocular, trinocular, and teaching head, all with a 30° inclination and a 360° rotation capability. It features a quadruple nosepiece with precise click stop, facilitating smooth objective changes among the high-quality achromatic objectives (4X, 10X, 40X, and 100X oil). With an integrated double layer mechanical stage, an adjustable Abbe condenser, and a high brightness 3W LED light source, this microscope ensures accurate and well-illuminated samples for rigorous scientific studies.
Market Price Range
The Biological Microscope YR0242-M // YR0242-T moves within a competitive market range. Typically, microscopes with similar features are priced between 500 USD and 800 USD, providing an excellent quality-to-price ratio for professionals and researchers needing reliable optical instruments.
Frequently Asked Questions
What is the magnification range of this microscope? The standard magnification range is from 40x to 1000x, providing flexibility for various applications.
Can the light source be adjusted? Yes, the brightness of the 3W LED is adjustable for optimal illumination.
Does this microscope come with a warranty? Warranty details can be confirmed upon request, ensuring protection against manufacturing defects.
Advantages and Disadvantages
Among its advantages, the YR0242 models offer high precision, flexible lighting options, and multiple observational configurations. However, a potential downside might be the necessity for regular maintenance to uphold the optical quality.
Use of the Product in the Field
This biological microscope is ideal for educational institutions, research laboratories, and medical facilities. It facilitates high-resolution observation and documentation of biological samples, enhancing teaching and research outcomes.
Recommendations
To maximize the efficiency of the YR0242 microscope, regularly clean the optical components and adjust the lighting according to sample requirements. Users are encouraged to download the detailed manual from the Kalstein Plus platform for comprehensive guidance. Request a quote today or generate an automatic quotation through our online system to get this essential lab equipment.
Features
- Choice of monocular, binocular, trinocular, or teaching head.
- Quadruple nosepiece with precise click stop.
- Integrated double layer mechanical stage.
- Abbe condenser N.A.1.25 with adjustable brightness LED.
- Offers both infinity plan and achromatic optical systems.
- Head inclined at 30°, rotatable 360°.
- Standard magnification from 40x to 1000x.
- Halogen 6V20W or LED light options.
Technical Specifications
| Model No. | YR0242-M | YR0242-B | YR0242-T |
| Video Adapter | —— | C-Mount 0.3x | —— |
| Power Supply Type | AC 110V-240V | —— | |
| Transmit Light | Halogen 6V20W or LED Optional | ||
| Light Source Type | Halogen | ||
| Condenser N.A. | 1.25 | ||
| Condenser Type | Abbe | ||
| Condenser Features | Rack & Pinionↆ↑, Filter Holder, Center Adjustable | ||
| Focusing Scale | 0.002mm | ||
| Focusing Range | 36mm | ||
| Focusing Type | Coaxial Coarse & Fine | —— | |
| Focusing Features | Safety Stop Screw Tension Adjustable | ||
| Working Stage Moving | 75*50mm | ||
| Working Stage Size | 132*142mm | ||
| Working Stage Type | 2 Layers Mechanical | ||
| Objective | Achromatic 4x, 10x, 40x(S), 100x(O,S) | ||
| Objective Type | Achromatic | ||
| Nosepiece Holes | 4 Holes | ||
| Nosepiece Features | Inward | ||
| Eyepiece | WF10x/18mm | ||
| Eyepiece Diameter | 23.2mm | ||
| Head Interpupillary | 54~75mm | ||
| Head Rotation | Head Rotate 360° | —— | |
| Head Inclination | 30° | —— | |
| Head Type | Monocular | —— | Seidentopf Trinocular |
| Standard Magnification | 40x-1000x | —— | |
| Optical System | Achromatic | ||
| Standard Function | BF | —— | |
Technical specifications
| Dimensions | L 34 × W 25.5 × H 49 cm |
|---|---|
| Weight | 6.0 kg |
| Manufacturer | Kalstein |
