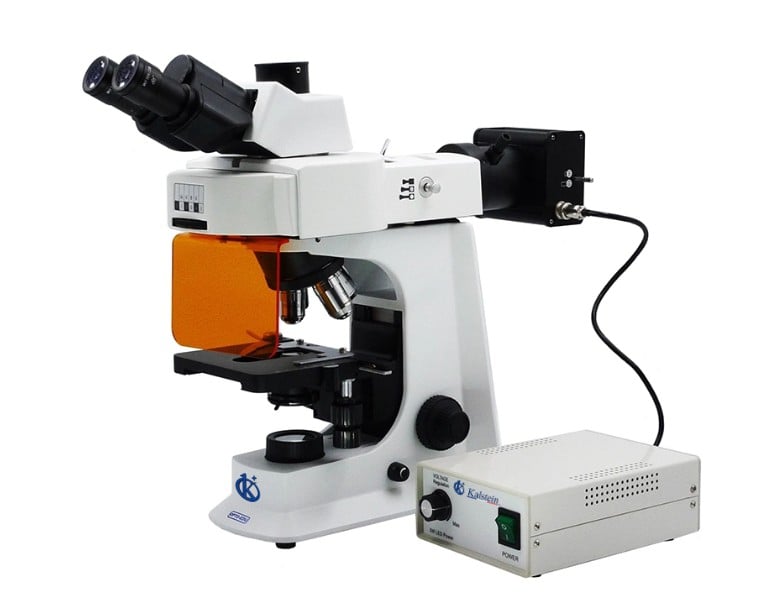

Binocular LED Fluorescent Microscope YR06653

The YR06653 Binocular LED Fluorescent Microscope is an advanced tool designed for observation applications in pathology and clinical laboratories. Equipped with a six-hole fluorescent unit, this microscope allows the installation of up to five fluorescent filters, providing versatility in the study of biological samples, tissues, and cell cultures. Its 5W LED fluorescent light source ensures bright and efficient illumination, ideal for long working hours. The microscope stands out due to its creative 100x water objective, eliminating the need for oil during observation, thus facilitating its use and maintenance. Additionally, its high-rigidity body structure ensures stability during use, enhancing observation accuracy. With a 360° rotating head and a swiveling eyepiece tube, the YR06653 offers comfort and flexibility, allowing users to adjust the observation angle according to their needs.

Frequently Asked Questions:

1. What makes the YR06653 different from other fluorescent microscopes? The YR06653 stands out for its ability to use water objectives instead of oil, simplifying use and reducing maintenance needs. Additionally, its LED lighting system is more efficient and durable.
2. Is it suitable for use in clinical laboratories? Yes, this microscope is ideal for pathology observations and clinical laboratories, thanks to its powerful LED illumination and adjustable fluorescent filters.
3. How is the focus adjusted? The focus on the YR06653 is coaxial, with both coarse and fine adjustments, allowing precise control over the focus at various magnification levels.

Advantages and Disadvantages:

Advantages:

• Efficient illumination: The 5W LED light source provides clear, bright observation without generating excessive heat.
• Easy maintenance: The 100x water objective eliminates the need for oil, making cleaning and maintenance easier.
• Versatility: The fluorescent unit with multiple filters and the Infinity E-Plan objective system allows a wide range of applications in biology, microbiology, and pathology.
• Comfort: The 360° rotating head and adjustable eyepiece tube ensure ergonomic use, suitable for long observation periods.

Disadvantages:

• Price: Although an advanced tool, its cost may be higher compared to microscopes without fluorescent functions.
• Weight: Due to its robust structure, it may be heavier than other simpler models.

Field and Laboratory Use

The YR06653 Binocular LED Fluorescent Microscope is widely used in clinical and research laboratories, especially for pathology studies and analysis of biological samples. Its ability to work with different fluorescent filters makes it perfect for research in biotechnology, microbiology, and genetics, where observing cellular or tissue details with superior resolution is crucial. It is also ideal for teaching, allowing students to observe samples with high precision and clarity.

Recommendations

To maximize the use of the YR06653, ensure that the filters and objectives are clean and free from fingerprints, as this could affect the quality of the observations. Also, since the microscope has a robust design, it is recommended to store it in a stable and secure place to prevent damage. It is also suggested to use the microscope with a stable power supply to ensure consistent illumination during prolonged observations.

Technical Specifications

Model	YR06653
Ocular	WF10x/20mm, 2 pcs.
Ocular diameter	23.2 mm
Head diopter	Left adjustable tube
Interpupillary distance	48~75mm
Head rotation	360°
Rotating ocular tube	360°
Head tilt	30°
Head type	Seidentopf binoculars
Standard magnification	40x-1000x
Optical system	Semi-plan infinity
Characteristics	Infinity
Update function	BF+PH+DF+PL+FL
Standard function	BF+FL
Focusing range	26mm
Focusing type	Coarse and fine coaxial
Focusing functions	Adjustable tension
Stage in motion	76x52mm
Stage size	145x140mm
Stage type	2 mechanical layers
Stage characteristics	Double slide, size ≥140x140mm
Objective	Infinity E-Plan: EPLAN 4x/0.10, WD=12.1 mm; EPLAN 10x/0.25, WD=4.14 mm; EPLAN 40x/0.65, WD=0.58 mm; EPLAN 100x/1.25 (S, oil), WD=0.19 mm
Objective type	Infinity E-Plan
Nozzle holes	4 holes
Nozzle characteristics	Interior
