Description

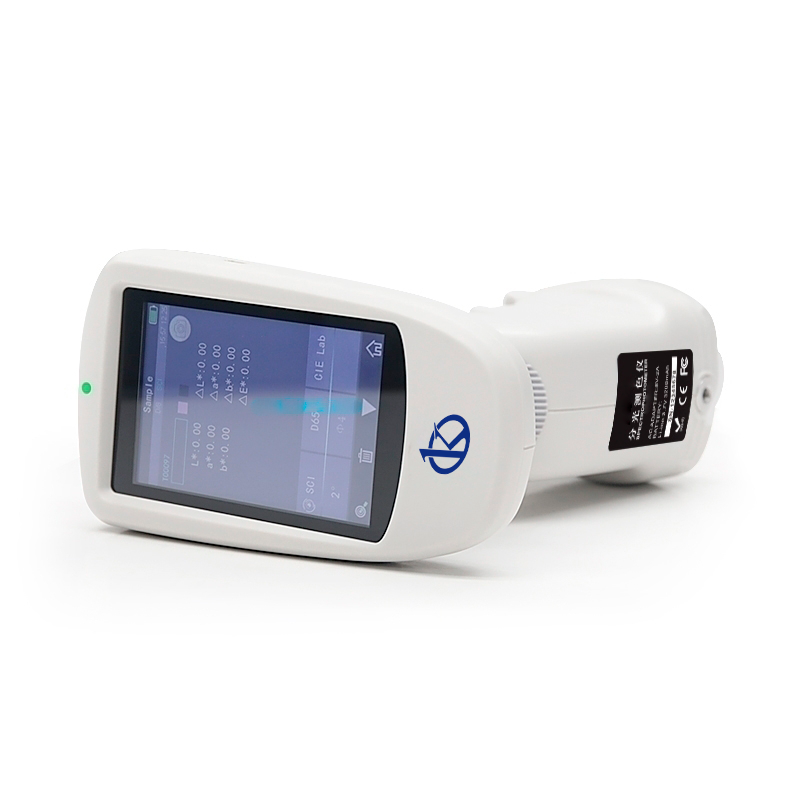

The Grating Spectrophotometer YR05493 from Kalstein is an essential instrument for precise color analysis in diverse industries such as electronics, plastics, textiles, automotive, cosmetics, and food technology. Known for its advanced 1000-line grating technology, this spectrophotometer features three measurement apertures (φ8 mm, φ4 mm, 1×3 mm) that provide flexibility for samples of various sizes. With a stable dual silicon photodiode array sensor, the YR05493 ensures reliable color measurements within the visible spectrum of 400 to 700 nm. Its ergonomic design and dual d/8 optical structures permit both SCI and SCE measurements, adhering to global standards like CIE No.15 and ASTM E1164, making it ideal for quality control both in laboratories and production settings.
Market Price
The market price for the YR05493 spectrophotometer typically ranges between $9600 and $10200 USD. Investing in this device is a strategic choice for companies committed to enhancing color control accuracy and efficiency in their production processes. For further inquiries or to obtain a personalized quote, you are encouraged to access the Kalstein Plus platform, ensuring a streamlined purchasing experience.
Frequently Asked Questions
- What industries can benefit from the YR05493?
This device is ideally suited for color management in sectors including plastics, textiles, ceramics, and printing, with special emphasis on fluorescent sample analysis. - Can the YR05493 interface with computers?
Yes, the spectrophotometer comes with comprehensive color management software for PCs, allowing detailed audits and robust data management. - What is its data storage capacity?
The model can store up to 1,000 standard readings and 30,000 sample measurements, supporting meticulous and organized record-keeping.
Advantages and Disadvantages
The YR05493 boasts numerous advantages, including exceptional precision with a standard deviation of ΔE*ab of just 0.03, versatility across multiple apertures, and compatibility with diverse color spaces and lighting conditions. Its USB and Bluetooth 4.2 connectivity ensures swift data transfer. One potential drawback is its limitation to measuring only within the visible spectrum range (400-700 nm), which might not suit applications necessitating extensive wavelength analysis.
Field Applications
The YR05493 is extensively utilized for high-precision color measurements required in industries such as plastics, textiles, coatings, and ceramics. Its capability to operate in both SCI and SCE modes, combined with numerous apertures, ensures it meets the specific demands of various samples, maintaining consistent results. Additionally, it is instrumental in color verification for signage and reflective film products, proving essential in laboratory and manufacturing line environments.
Recommendations
For optimal performance of the YR05493, regular calibration is recommended, alongside storing the equipment in a clean, dust-free setting. The lithium-ion battery provides up to 6,000 measurements within 8 hours; hence, routine charging is advised. Visit the Kalstein Plus platform to request a personalized quote or generate an instant quote, and discover how the YR05493 Grating Spectrophotometer can elevate your industry’s color control precision and efficiency, enhancing every production stage.
Features
- Advanced 1000-line grating technology.
- Three measurement apertures for sample adaptability.
- Versatile dual optical structures for SCI/SCE measurements.
- USB and Bluetooth 4.2 for efficient data transfer.
- Capacity to store extensive standard and sample measurement data.
Technical Specifications
| Model | YR05493 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | 3 measuring apertures for accurate color analysis and transmission in laboratory |
| It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| LAV1x3mm: Slightly poor accuracy, can be used for color test | |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,
F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture |
| Optional Accessory | Micro Printer, Powder Test Box, Holding base |
| Notes | The specifications are subject to change without notice. |
