Description

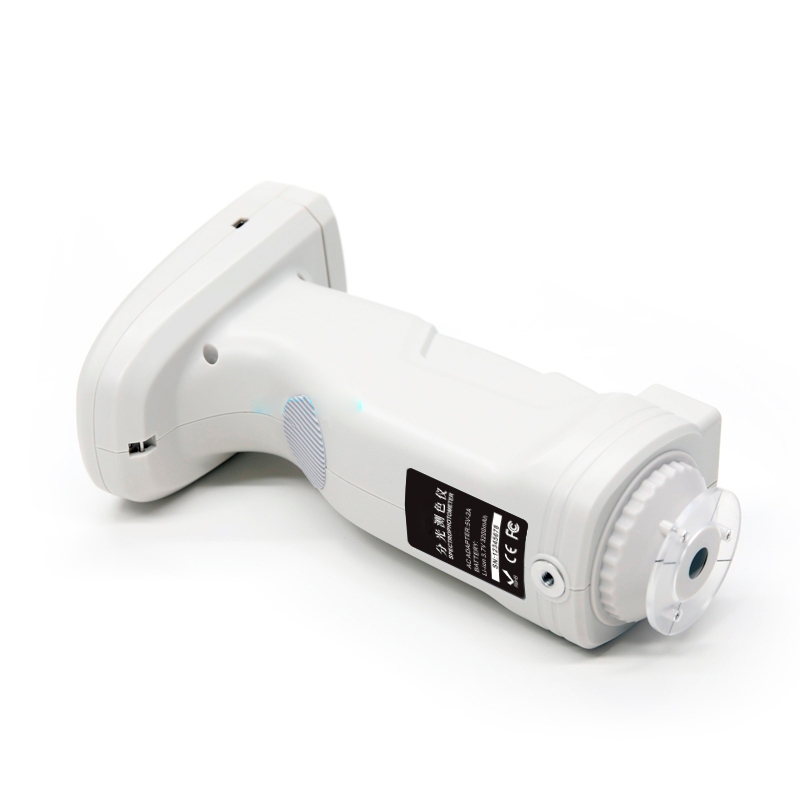

The Grating Spectrophotometer YR05495 by Kalstein is engineered to deliver exceptional color analysis precision across diverse industrial sectors, including electronics, cosmetics, textiles, plastics, automotive, and food production. This sophisticated tool boasts three measurement apertures (φ8 mm, φ4 mm, 1×3 mm) and is equipped with advanced 1000-line precision grating technology. Utilizing a silicon photodiode array sensor and a full-spectrum LED light source, it guarantees reliable color assessment in the visible range (400-700 nm). For laboratories and production management seeking flexible SCI and SCE measurements, its dual optical structure makes the YR05495 an exceptional choice for quality control.
Market Price
The Grating Spectrophotometer YR05495 is competitively priced in the market, with an average range from $5,000 to $5,800 USD, based on configurations and additional accessories. This price point offers a strategic value for businesses aiming to enhance the precision and efficiency of their color control processes. For a customized and detailed quote, or to effortlessly generate one instantly through Kalstein Plus, we encourage you to explore your options and make an informed purchasing decision.
Frequently Asked Questions
- What sectors benefit most from the YR05495?
This spectrophotometer is ideal for color control in industries, including plastics, textiles, ceramics, and printing, with special proficiency in measuring fluorescent samples. - Is the YR05495 compatible with PC integration?

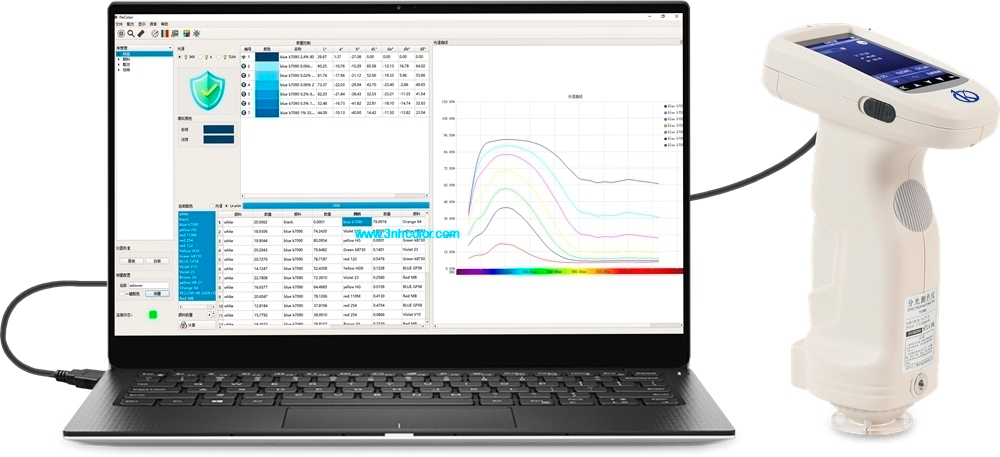

Yes, it seamlessly integrates with PC color management software to facilitate comprehensive color quality data analysis and management. - How large is the sample storage capacity?
The device efficiently stores up to 1,000 standards and 20,000 samples, supporting meticulous and organized data handling.
Advantages and Disadvantages
The YR05495’s primary advantages include its high precision, with a standard deviation of ΔE*ab of 0.03, ease of use due to its ergonomic design, and capability to work with different color spaces and light sources. Its USB connectivity offers quick data transfers. However, its limitation to the visible wavelength range (400-700 nm) may pose constraints on applications requiring broader spectra.
Field Applications
This spectrophotometer excels in quality control applications requiring high color accuracy, notably in plastics, textiles, and coating industries. By providing detailed color analysis through its multiple measurement apertures and SCI/SCE modes, it assures consistency and reduces variation in final products. Additionally, it proves invaluable in analyzing traffic signal colors and reflective films, making it essential for both lab and production line use.
Recommendations
To ensure peak performance of the YR05495, regular calibrations and maintenance in a clean environment are advised. Its rechargeable lithium-ion battery supports up to 6,000 measurements within an 8-hour span, ensuring constant availability. Discover how the YR05495 Grating Spectrophotometer can boost your industry’s color control precision and efficiency by requesting or generating an instant quote through Kalstein Plus.
Features
- Three measurement apertures for diverse sample sizes
- Advanced grating technology and silicon photodiode array sensor
- Dual optical structure for SCI and SCE measurements
- Compatibility with PC software for data management
- High storage capacity for standards and samples
Technical Specifications
| Models | YR05495 |
| Optical Geometry | Reflect: di:8°, de:8°(diffuse illumination, 8-degree viewing angle) |
| SCI (mirror component included)/SCE; UV light source excluded | |
| Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 | |
| Characteristic | Custom aperture for accurate color measurement and quality control in plastics, electronics, paint, ink, textiles, garment printing and dyeing, printing, ceramics, and measuring fluorescent samples. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat grid |
| Sensor | Silicon photodiode array (dual row 40 groups) |
| Wave Range | 400~700nm |
| Wavelength Range | 10nm |
| Semi-bandwidth | 10nm |
| Medium Reflectance Range | 0-200% |
| Measurement Aperture | A customized aperture: MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm |
| Specular Component | SCI & SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2) |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Other Color Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| Stain fastness, color fastness, color intensity, opacity, | |
| 8th Brightness, | |
| Observer Angle | 2°/10° |
| Illuminator | D65, A, C, D50, F2(CWF), F7(DLF), F10(TPL5), F11(TL84), F12(TL83/U30) |
| Data Displayed | Spectrogram/Values, Sample Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Compensation |
| Measuring Time | About 1.5s (measure SCI and SCE about 3.2s) |
| Repeatability | Spectral Reflectance: MAV/SCI, Standard Deviation within 0.1% (400nm to 700nm: within 0.2%) |
| Chromaticity Value: MAV/SCI, within ΔE*ab 0.04 (when a white calibration plate is measured 30 times at 5-second intervals after white calibration) | |
| Error Between Instruments | AVM/SCI, Within ΔE*ab 0.2 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single measurement, average measurement (2-99 times) |
| Location Method | Camera location, stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | About 600g |
| Power | Li-ion battery, 3.7 V, 5,000 mAh, 6,000 measurements in 8 hours |
| Illuminant Lifespan | 5 years, more than 3 million times detected |
| Data Displayed | 3.5-inch TFT color LCD, capacitive touch screen |
| Data Port | USB, |
| Data Storage | 1,000 standard pieces, 20,000 sample pieces |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensation), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessory | Power adapter, user guide, PC software (download from office website), USB cable, black and white calibration well, protective cover, wrist strap, one aperture (8mm or 4mm) |
| Optional Accessory | Micro printer, dustproof box |
| Notes | Specifications are subject to change without notice. |
