Handheld Color Spectrophotometer YR05497

The Handheld Color Spectrophotometer YR05497 offers unparalleled precision in color management and analysis for industries like plastics, paints, textiles, food, and cosmetics. With its 45/0 geometric optical structure, this device adheres to CIE and GB/T standards, promising reliable measurements every time. Despite its robust capabilities, the spectrophotometer is ergonomically designed and lightweight, making it ideal for both field and laboratory work. Its significant features include a user-friendly 3.5-inch touchscreen, an 8 mm aperture, and a wavelength range of 400 to 700 nm, delivering high precision with a Delta E*ab of just 0.04. It also boasts extensive data storage for up to 15,000 samples, ensuring thorough record-keeping.

Market Price

The YR05497 is available in the market with a competitive price range of $5,500 to $6,100 USD, depending on additional accessories and specific configurations. This investment will significantly boost the efficiency and accuracy of your color quality control processes. For those interested in leveraging its advanced functionalities, you can easily request a personalized quote or generate one automatically via Kalstein Plus for a seamless purchasing experience.

Frequently Asked Questions

• What applications is the YR05497 suitable for? This spectrophotometer excels in color control for sectors like plastics, paints, inks, and textiles, and is suitable for color studies involving fluorescent samples.
• Is the device compatible with a PC? Absolutely, the YR05497 includes advanced color management software that seamlessly connects to a PC, enhancing its functionalities and ensuring efficient data management.
• How many samples can the device store? The spectrophotometer's large storage capacity allows it to hold up to 1,000 standard measurements and 15,000 samples, supporting comprehensive and organized data recording.

Advantages and Disadvantages

The YR05497 is renowned for its extraordinary precision in color analysis (ΔE*ab of only 0.04), its portability, and its compatibility with international standards. It includes USB and RS232 connectivity, simplifying data transfer. However, its wavelength range is limited to the visible spectrum (400-700 nm), which might not accommodate applications requiring broader range measurements.

Field Applications

This device is essential for quality control applications in industries like plastics, paints, and textiles, where color consistency is critical. The portability and precision make it perfect for in-situ measurements in production areas and laboratories. Moreover, its advanced software and color simulation capabilities enhance color management, enabling real-time adjustments to ensure product quality.

Recommendations

To maximize the YR05497's performance, regular calibrations are essential, and it should be maintained in a clean, dry environment. Its lithium-ion battery supports up to 5,000 measurements in an 8-hour period, so regular charging is advisable for optimal availability. For a comprehensive and efficient color control solution in your industry, request a tailored quote or generate one instantly on Kalstein Plus and discover how the Handheld Color Spectrophotometer YR05497 can revolutionize your color management processes.

Features

• Ergonomic and lightweight design for portability
• High precision with Delta E*ab of 0.04
• Extensive data storage for up to 15,000 samples
• 3.5-inch touchscreen for user-friendly interface
• USB and RS232 connectivity for data transfer

Technical Specifications

Model	YR05497
Illuminating/Viewing Method	45°/0 (45° ring illuminating, 0° viewing) Comply to standard CIE No. 15, GB/T3978, GB2893, GB/T18833
Integrating Sphere Size	Φ58mm
Measuring Aperture	Φ8mm
Observer	2°/10°
Repetitive Error	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instrument Error	ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II)
Wavelength Range	400∽700nm
Wavelength Pitch	10nm
Reflectance Range	0∽200%
Light Source Type	D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light Source Device	Combined LED Light
Light Source Life	5 years, more than 1.6 million measurements
Sensor	Silicon Photoelectric Diode Array
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula	ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Display Data	Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data	Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
	Yellowness-YI(ASTM D1925，ASTM 313),
	TI(ASTM E313，CIE/ISO),
	Metamerism Index (Mt)
	Colour Stain, Color Fastness, Color Strength, Opacity
Measuring Time	1.5s
Data Storage	1000 standards, 15000 samples
Data Port	USD&RS232
Dimension	90*77*230mm
Weight	600g
Battery	Li-ion Battery, 5000 measurements in 8 hours.
Operation Temperature	0∽40℃(32∽104℉)
Storage Temperature	-20∽50℃(-4∽122℉)

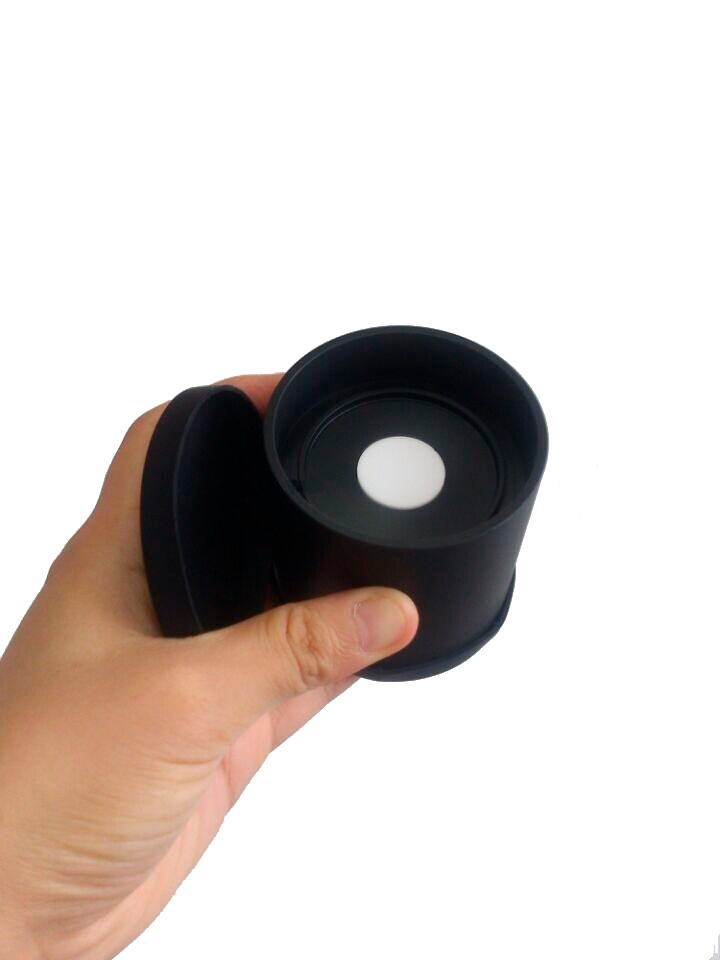

Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory	Universal Test Components, Micro Printer, Powder Test Box
