Description
Digital Technology
Alarm with freely set limit.
Accurate measurement during low perfusion
Anti-Movement, Stable Performance
Features
- Built-in rechargeable battery and seat-type charger; Power-Saved Function
- Built-in memory card for data memory; connection with computer for downloading data
- Bright, Easy-to-Read LED Numerals
- Lightweight, Portable
- 2 parameters: SPO2 + Pulse Rate
Technical Specifications

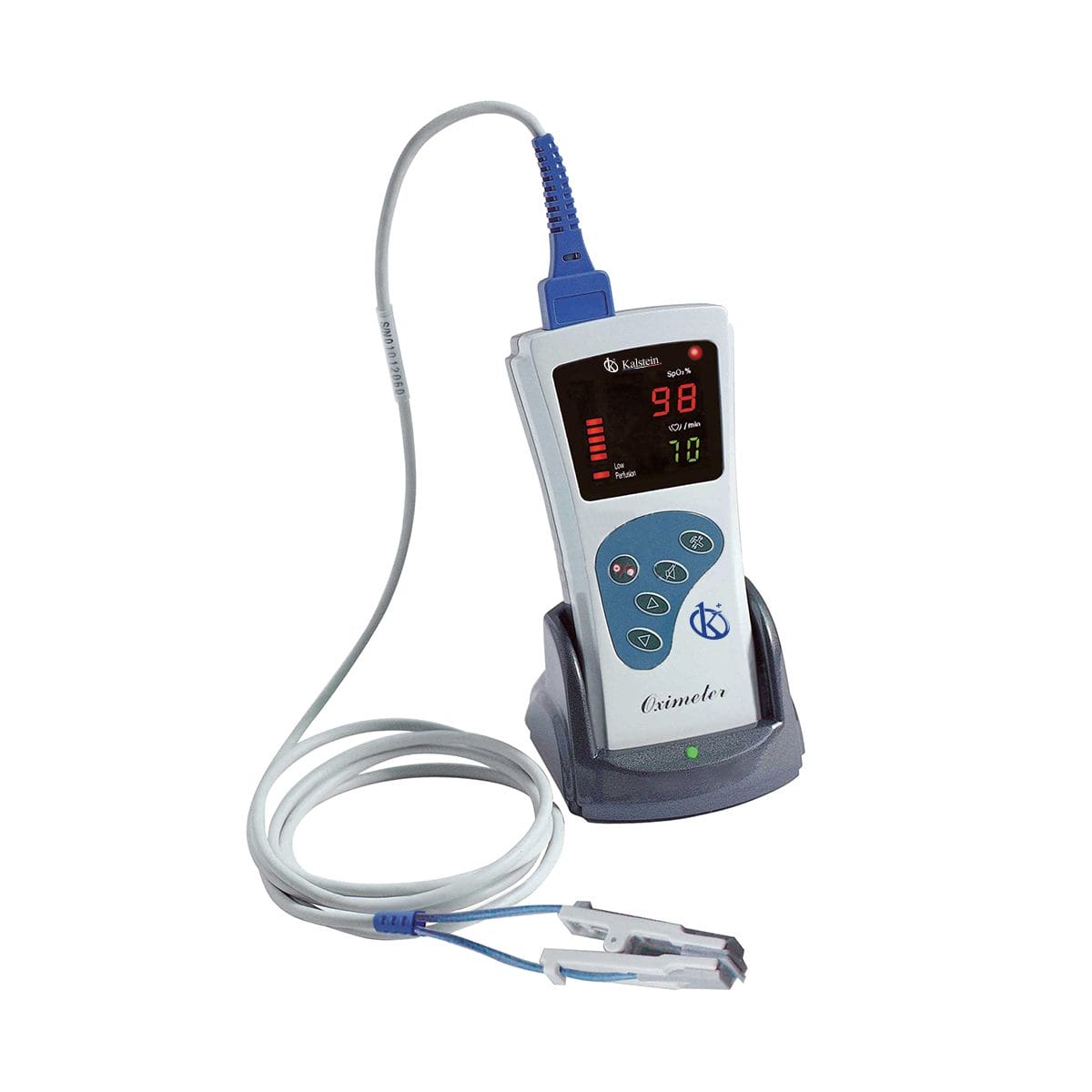

| Model | YR06107 | |
|
SpO2
|
Measurement range | 0-100% |
| Accuracy | ±2% during 70%-100% ±3% during 60%-69% |
|
|
Pulse Rate
|
Measurement range | 15bpm-400bpm% |
| Accuracy | 1 bpm or ±2%, Take the bigger one | |
|
Visual Displays and Indicators
|
SpO2 display | Red LED, Variable brightness |
| Pulse Rate display | Green LED, variable brightness | |
| Pulse intensity | Red LED 8 bars | |
| Power Indicator Light | Normal: Green Low Power voltage: Red and Blink Low perfusion indicator: Red bar |
|
| Audio Indicator | Probe off audio indicator (every thirty seconds) Pulse audio indicator Key-pressing indicator Low power voltage |
|
|
Environmental Specifications
|
Temperature Range | Operating: (0 ~ +50) °C |
| Transport/Storage | (-40 ~ +70)°C | |
| Relative Humidity | Operating: 10~ 95% | |
|
Power Requirements
|
Input | 98~260 VAC, 50/60Hz |
| Consumption | ＜80VA | |
