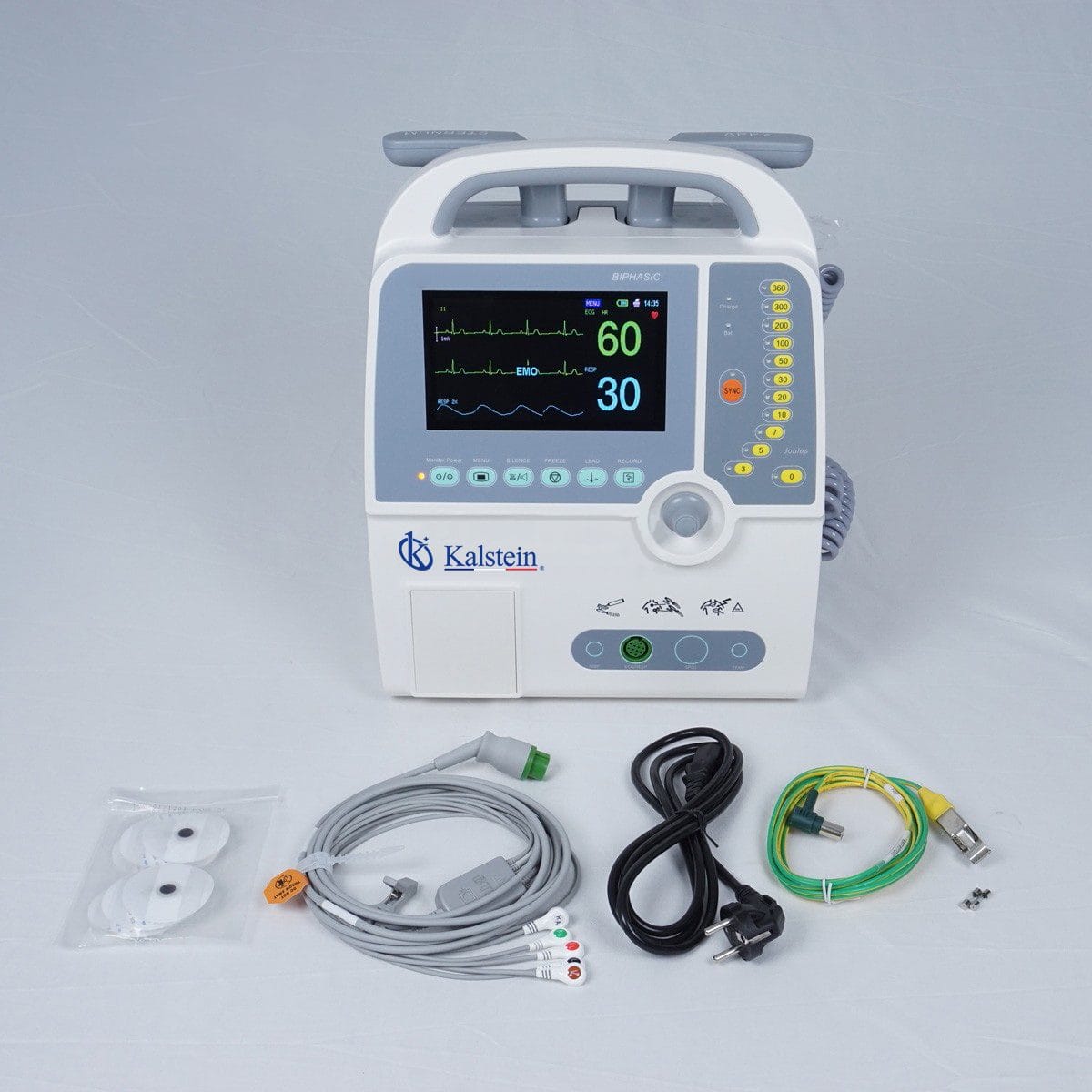

Description
Add built-in recorder as standard configuration. Defibrillation discharge trigger recording
Add Li-ion battery as standard configuration
Add SpO2 module as optional configuration
Voice prompt
ECG waveform via paddle electrode
Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
Technical Specifications
| Model | YR06111 | |
|
Display
|
Screen Type | High-resolution display, TFT color display |
| Screen Size | 7 inches (17.7cm) diagonally | |
| Sweep Speed | 12.5/25/50mm/sec | |
| Information | Heart Rate, Lead, Alarm On/Off, Delivered Energy | |
| Resolution | 800×480 | |
|
ECG
|
Patient Connection | 3-lead ECG cable, or 5-lead ECG cable, paddles |
| Lead Selection | Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V | |
| ECG Size | 2.5,5, 10, 20, 30 mm/mV display on monitor | |
| Heart Rate | 20-350BPM | |
| Protection | With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation | |
|
Defibrillator
|
Waveform | Biphasic |
| Defibrillator type | Manual External Synchronous/Asynchronous Defibrillation | |
| Charge Time | Less than 10 seconds to 360 Joules | |
| Energy Display | Monitor display indicates both selected and delivered energy | |
| Charge Prompt Type | Voice and visual prompts | |
| Energy Selection | Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules | |
| Standard Adult/Pediatric Paddles | Reusable external adult paddles (pediatric paddles integrated) | |
|
Battery Description
|
Standard Type | Li-ion battery Li1104c 11.1Vdc 4000mAh X2 |
| Standard Capacity | Up to 10 hours ECG monitoring or 60 full-energy discharges | |
| Low Battery Indicator | Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on | |
| Recharge Rate | 80% in 3 hours. 100% in 5 hours | |
|
Built-in Recorder
|
Paper | 50mm thermal |
|
Printing Method
|
High-resolution, thermal print head | |
| Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform | ||
|
Print mode
|
HR exceed limits alarm recording | |
| Auto timed recording | ||
| Real-Time Recording | ||
| Defibrillation discharge trigger recording | ||
|
Power
|
AC-DC dual-use | Use the batteries, AC 100V~240V, 50/60Hz |
| Vehicle Voltage (Option) | DC 12V | |
