Kalstein

High cost-effective Portable Colorimeter YR05515

SKU:YR05515 · By Kalstein

Category:Colorimeter

High cost-effective Portable Colorimeter YR05515

High cost-effective Portable Colorimeter YR05515 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

Kalstein team concentrates on customer needs and develops a new serie  YR05515 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

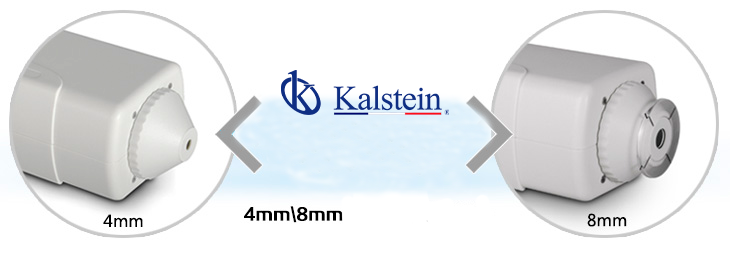

  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
ModelYR05515
llluminating / Viewing GeometryD/8°
StandardCIE No.15, GB/T 3978
Sensorsilicon photodiode
Measuring Aperture 4mm
Color SpaceCIE LAB, Lch
ObserverCIE 10°
IlluminantD65
Display DataColorimetric Value, Color Difference Value Storage
temperature/Graph, PASS/FAIL Result, Color Offset
Measuring Time1.5 s
Repeatability ΔE*ab ≤ 0.03 (Average of 30 measurements of standard white plate)
Dimension205*67*80mm
Errors between each instrument ΔE*ab 0.4
Weight400g
Batteryrechargeable lithium-ion battery 3. 7V@ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
ScreenTFT 2.8 inch(16: 9)
InterfaceUSB
Storage100 Standards, 10000 Samples
Operating Temperature0-40°C(32-104°F)
Storage temperature -20-S0°C(-4-122°F)
Optional accessoryminiature thermal printer, powder test box

Technical specifications

DimensionsL 33 × W 12 × H 15 cm
Weight1 kg
ManufacturerKalstein

Image gallery

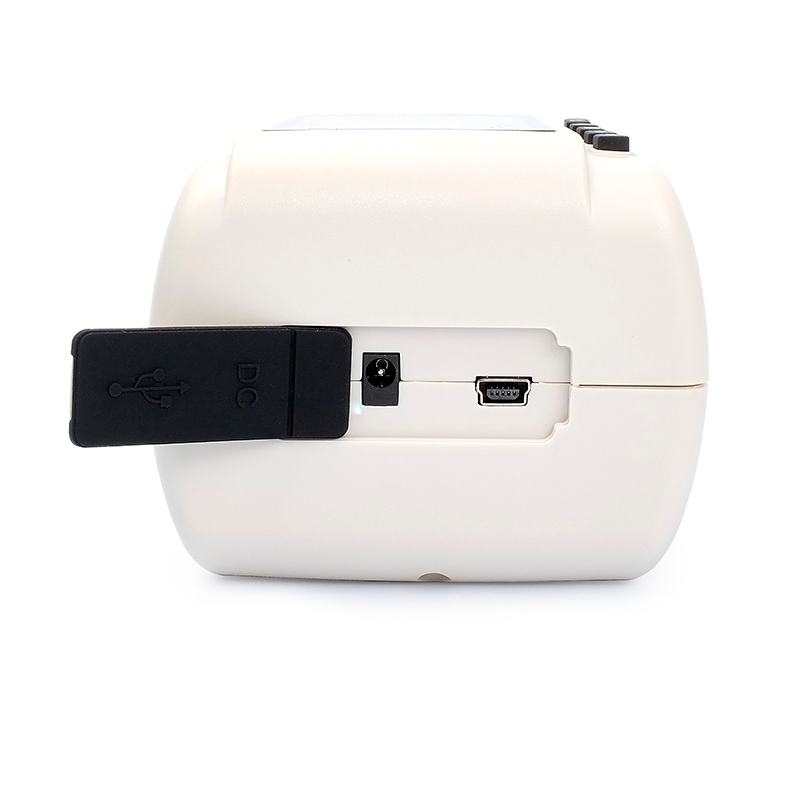

High cost-effective Portable Colorimeter YR05515 – 1

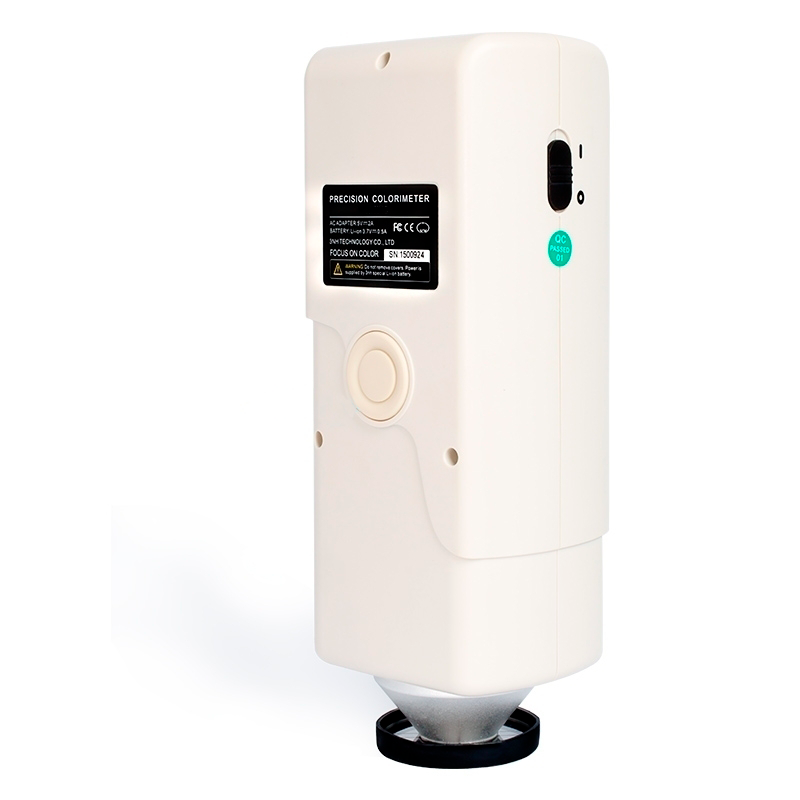

High cost-effective Portable Colorimeter YR05515 – 2
High cost-effective Portable Colorimeter YR05515 – 3
High cost-effective Portable Colorimeter YR05515 – 4

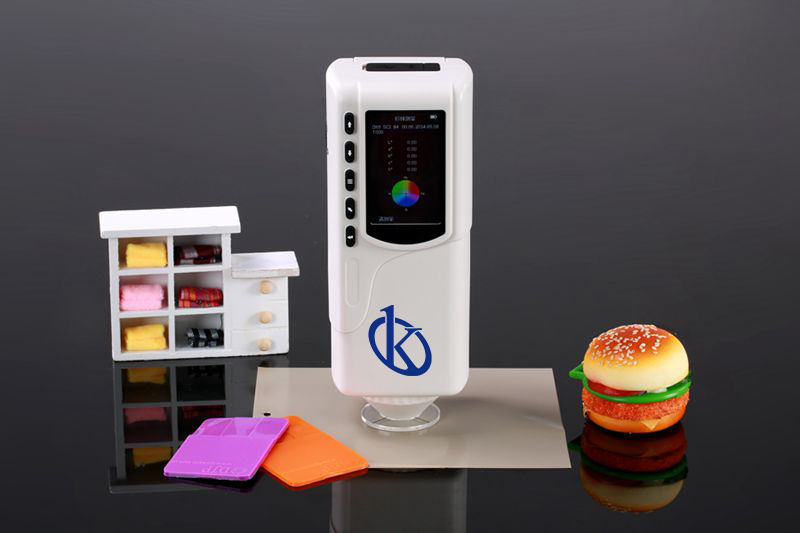

High cost-effective Portable Colorimeter YR05515 – 5

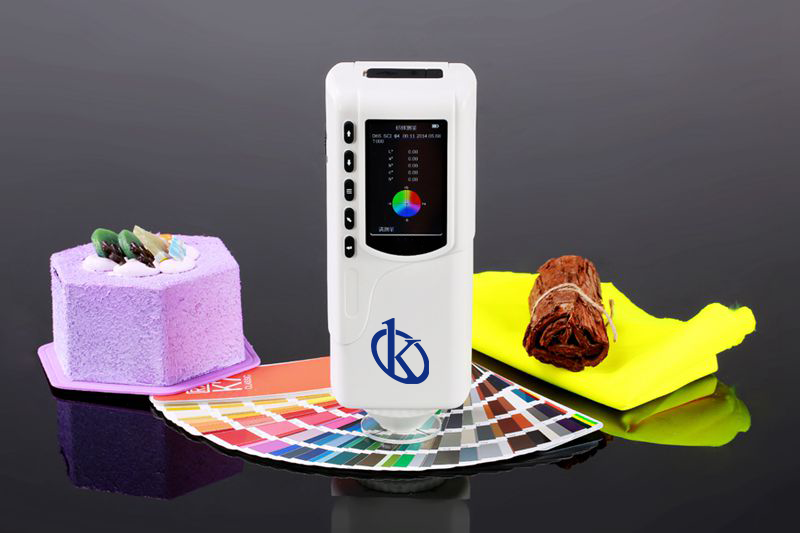

High cost-effective Portable Colorimeter YR05515 – 6

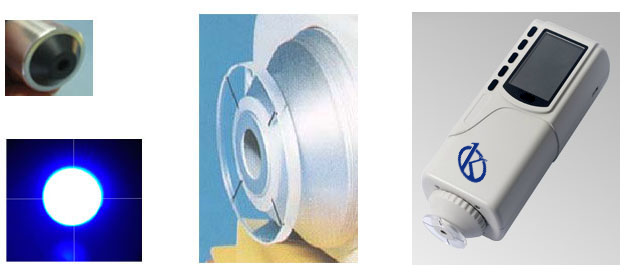

High cost-effective Portable Colorimeter YR05515 – 7

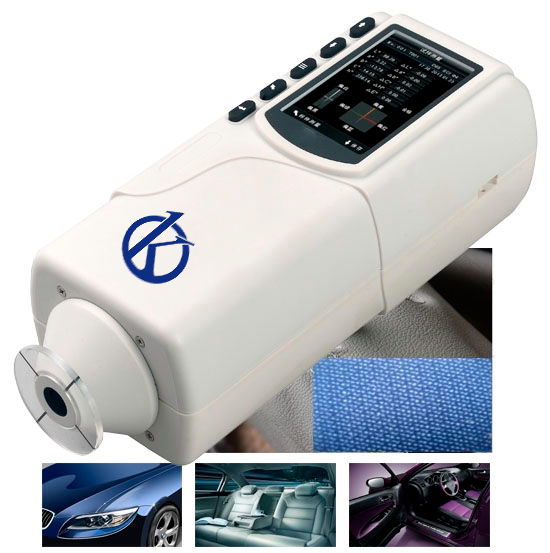

High cost-effective Portable Colorimeter YR05515 – 8

Video High cost-effective Portable Colorimeter YR05515

Kalstein Colorimeter · YouTube · Kalstein
Request a quoteContact salesView full catalog

Frequently asked questions

How to know the prices of High cost-effective Portable Colorimeter YR05515?

To know the price of High cost-effective Portable Colorimeter YR05515, please send us an email with your request through the contact form AQUI.

What are the delivery times for High cost-effective Portable Colorimeter YR05515?

Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.

How to make a purchase of High cost-effective Portable Colorimeter YR05515?

You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.

How does the warranty work for High cost-effective Portable Colorimeter YR05515?

All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.

Can I request a quote online for High cost-effective Portable Colorimeter YR05515?

Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
