Description

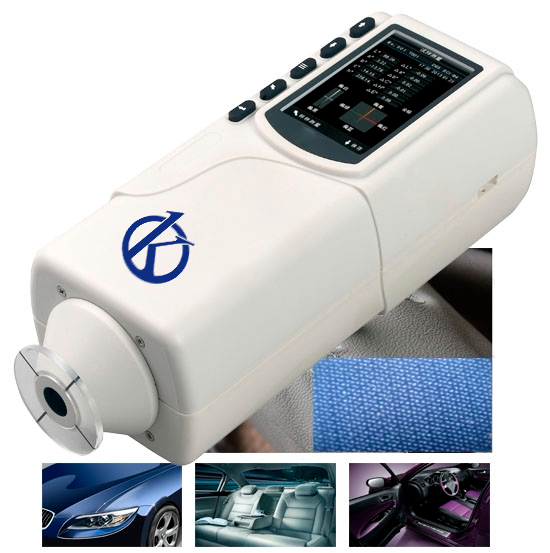

Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, R05509 // YR05513 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
- Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

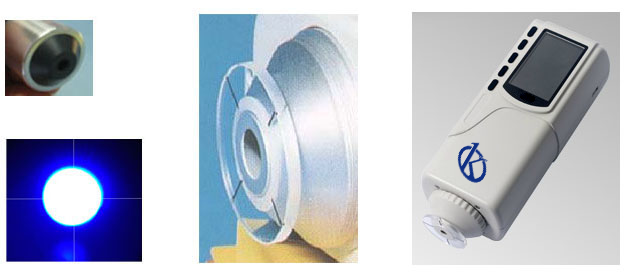

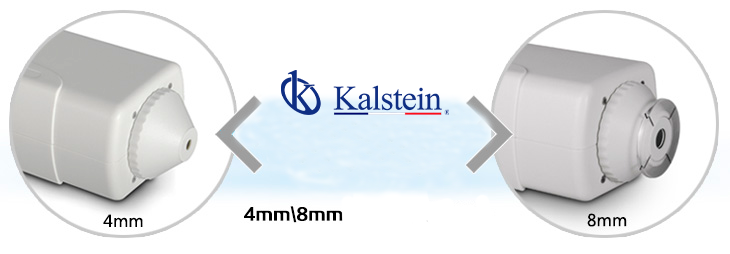

- Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
- Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Handheld design: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- High cost performance: large output, good quality, cheap products.
Technical Specifications
| Model | YR05509 |
| Illuminating/Viewing Geometry: | 8°/ d |
| Light Source: | LED Light |
| Sensor: | silicon photodiode array |
| Measuring aperture: | Φ8mmflat aperture; Φ4mmtip aperture |
| Color Space： | CI E L AB，XYZ，LCh，CI E RGB，CI E LUV |
| Color Difference Formula: | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 |
| Other Chromaticity Data: | WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCI I |
| Observer: | CI E 10° |
| Illuminant: | D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12 |
| Display Data: | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measuring Time: | 0. 4s |
| Repeatability: | ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s) |
| Errors between each instrument: | within Delta E*ab 0.2 |
| Dimension: | 205*67*80mm |
| Weight: | 500g |
| Battery: | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life: | 5 years, more than 1.6 million measurements |
| Screen: | TFT 2.8 inch（16: 9） |

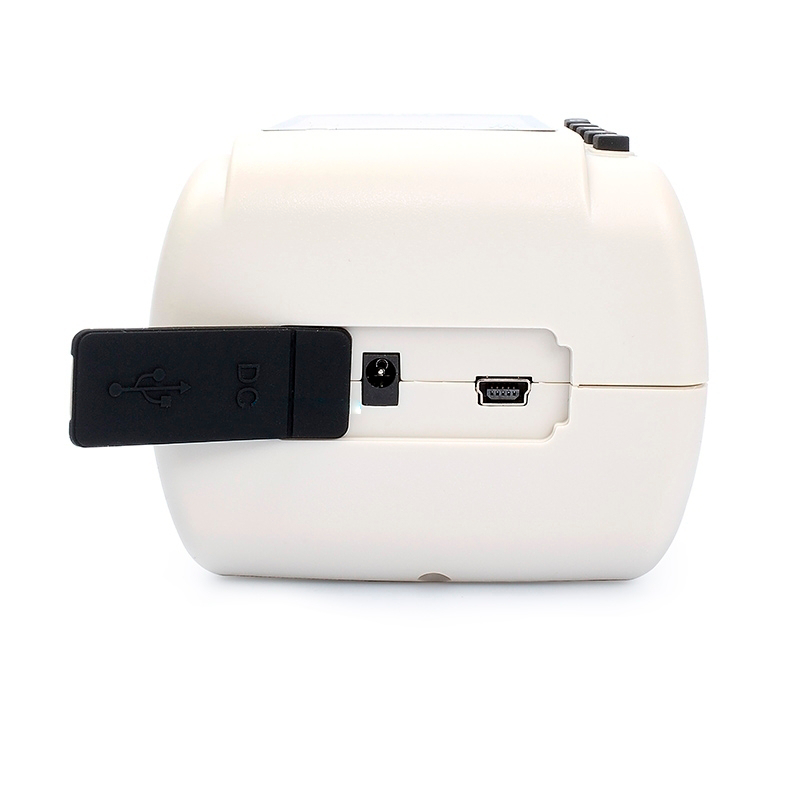

| Interface: | USB/ RS- 232 |
| Storage: | 100 Standards, 20000 Samples |
| Operating Temperature: | 0~40℃（32~104°F） |
| Storage temperature: | -20~50℃（-4~122°F） |
| PC software: | CQCS3 software |
| Optional accessory: | miniature thermal printer, powder test box |
