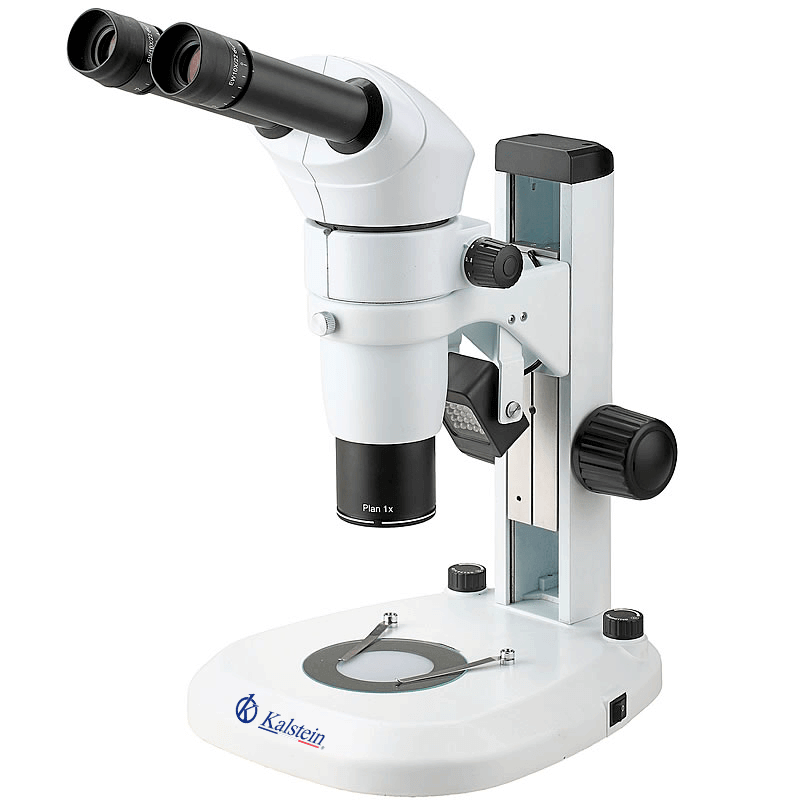

Site Requirements and Installation Conditions for the YR0247 Microscope
The YR0247 microscope is a sophisticated instrument designed to provide unmatched optical performance. However, its effectiveness heavily relies on proper installation and environmental conditions. Understanding these requirements ensures that the microscope operates seamlessly, maintains accuracy, and extends its lifespan.
Key Installation Conditions
To ensure optimal performance of the YR0247 microscope, specific installation conditions must be met. This section outlines the critical factors to consider during the setup process.
Temperature Range
The YR0247 operates best within a controlled temperature range. Maintaining a stable environment is crucial to prevent thermal drift, which can affect imaging quality.
- Ideal Operating Temperature: 20°C - 25°C
- Acceptable Range: 15°C - 30°C
Humidity Levels
Humidity can significantly impact the performance of optical systems. It is crucial to keep the ambient humidity at appropriate levels.
- Recommended Relative Humidity: 40% - 60%
- Maximum Tolerance: Up to 70% (with precautions)
Power Supply Requirements
The YR0247 microscope requires a stable power supply to operate effectively. Fluctuations in power can lead to device malfunctions or damage.
- Voltage Rating: 100-240V AC
- Frequency: 50/60 Hz
Vibration and Stability
Vibration can cause image blurring and affect the precision of measurements. Thus, the microscope should be placed on a stable surface free from vibrations.
- Recommended Installation Surface: Heavy-duty laboratory tables
- Avoid areas near heavy machinery or foot traffic
Ventilation and Air Quality
Proper ventilation is vital for maintaining the internal components of the YR0247 and ensuring longevity.
- Ensure air circulation is not obstructed
- Use in a clean, dust-free environment
Space and Clearance Requirements
To operate the YR0247 effectively, sufficient space and clearance must be maintained around the microscope.
- Minimum Clearance: 30 cm around all sides for air circulation
- Workspace Dimensions: At least 1.5 m x 1.5 m recommended
Environmental Contaminants
It is essential to minimize exposure to environmental contaminants that could interfere with the microscope’s optical system.
- Avoid exposure to strong electromagnetic interference (EMI)
- Keep away from chemical fumes and spills
Site-Prep Checklist for YR0247
| Preparation Step | Description |
|---|---|
| Temperature Control | Ensure temperature is within 20°C - 25°C. |
| Humidity Check | Maintain relative humidity at 40% - 60%. |
| Power Supply | Verify voltage and frequency compatibility. |
| Vibration Assessment | Ensure stability of installation surface. |
| Air Quality | Confirm clean, dust-free environment. |
| Space Clearance | Ensure minimum clearance of 30 cm around the microscope. |
| Contaminant Prevention | Avoid chemicals and EMI exposure. |
Technical Specifications of the YR0247 Microscope
| Specification | Details |
|---|---|
| Model | YR0247 |
| Optical System | Parallel optical system, modular design for easy function addition |
| Eyepiece | Extra wide field eyepiece EWF10x/22 mm, adjustable diopter |
| Zoom Ratio | Up to 1:10 with adjustable viewing angle |
| Illumination | LED transmission and reflection, adjustable brightness, 6000-hour lifespan |
| Weight | 10 kg |
| Dimensions | 37 x 32 x 67 cm |
Frequently Asked Questions
What environmental conditions are necessary for optimal use of the YR0247 microscope?
Optimal use of the YR0247 microscope requires maintaining a temperature range between 20°C - 25°C and humidity levels between 40% - 60%. This helps to prevent thermal drift and ensures image clarity.
How can I ensure proper electrical supply for the YR0247 microscope?
The YR0247 requires a stable power supply with a voltage rating of 100-240V AC and a frequency of 50/60 Hz. Fluctuations in power should be avoided to protect the microscope.
What is the impact of vibrations on the YR0247 microscope's performance?
Vibration can cause blurring of images and affect measurement precision. It is crucial to install the microscope on a heavy-duty table or a vibration-free surface to minimize these effects.
Why is ventilation important for the YR0247 microscope?
Good ventilation is vital for maintaining the internal components of the YR0247. It helps prevent overheating and prolongs the lifespan of the microscope.
What space requirements should I consider when installing the YR0247 microscope?
The installation area should have a minimum clearance of 30 cm around the microscope to allow for proper air circulation and easy access for operation and maintenance.
Can environmental contaminants affect the YR0247 microscope?
Yes, environmental contaminants such as dust, chemical fumes, and electromagnetic interference can adversely affect the microscope's performance. It is important to set up the microscope in a clean and controlled environment.
How do I prepare the site for the installation of the YR0247 microscope?
To prepare the site, ensure the temperature and humidity are within recommended ranges, verify stable electrical supply, confirm the installation surface is stable and free from vibrations, and maintain a clean environment.
Request a quote on Kalstein Plus to learn more about the YR0247 microscope and its accessories.
