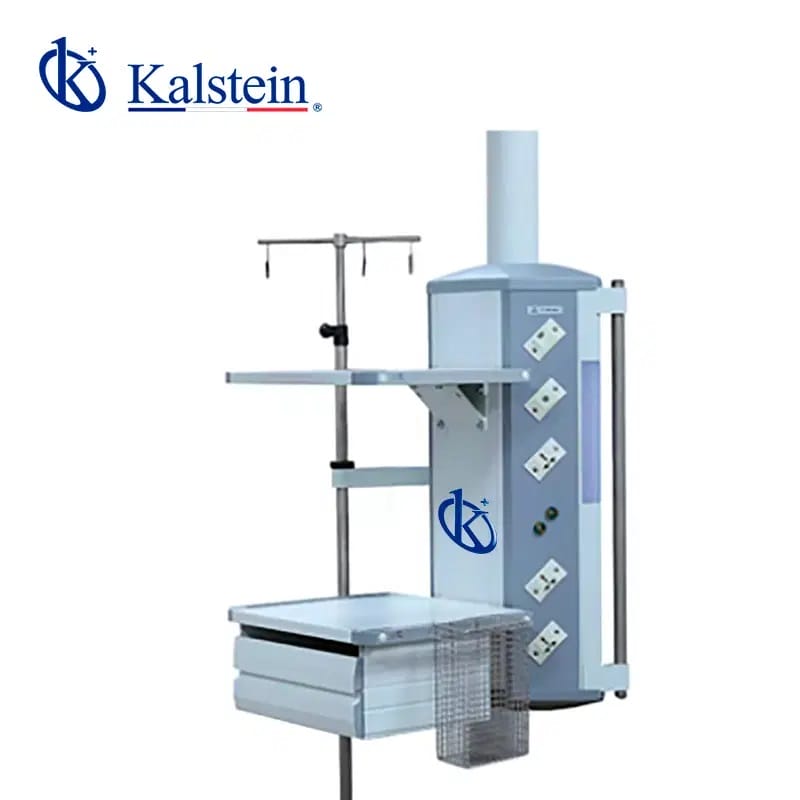

The Multipurpose Column YR02075 is an essential tool designed to optimize workspace in medical environments, providing support for a wide range of equipment and facilitating quick access to electrical connections and medical gas outlets. With an arm rotation radius of 800 mm + 800 mm and a rotation angle of 340°, this column allows easy access from different positions and facilitates the handling of medical devices. Additionally, its friction brake system ensures stability and safety during use. This model has a load capacity of up to 120 kg, allowing it to support multiple devices and accessories without compromising stability.
|
Technical Specifications |
Details |
|
Model |
YR02075 |
|
Arm Rotation Radius |
800mm + 800mm |
|
Arm Rotation Angle |
340° |
|
Braking System |
Friction brake |
|
Maximum Load Capacity |
120 kg |
|
Electrical Outlet |
2 grounded outlets |
|
Standard Configuration |
2 oxygen (O2), 1 air, 1 vacuum (VAC), 8 power outlets of 10A, 1 network outlet, 1 ground terminal |
|
Attachments |
2 trays, 1 drawer, 1 infusion stand |
|
Accessories |
2 equipment shelves, 1 IV pole & infusion pump holder |
Market Price
The Multipurpose Column YR02075 is priced in the market depending on the additional features requested, as well as the supplier and distribution policies. Typically, the price range is between 1,200 and 3,000 USD. This column represents a quality investment for space optimization in clinics, hospitals, and health centers. If you would like a specific quote for your institution or to learn more details about the product, you can generate a personalized quote through Kalstein Plus, a platform that makes it easy to obtain an automatic budget.
Frequently Asked Questions
What type of environments is the Multipurpose Column YR02075 suitable for?
This column is ideal for medical environments that require organization and quick access to equipment, such as hospitals, clinics, and intensive care units. Its load capacity of up to 120 kg and wide rotation range make it useful in operating rooms and monitoring areas.
Is the column easy to adjust and move?
Yes, the YR02075’s design allows for easy adjustment with its 340° rotation angle and extended rotation radius, providing quick access to devices. The friction brake system keeps the column fixed and stable when placed in the desired position.
What gas connection options does this column include?
The standard configuration of the YR02075 includes two oxygen outlets, one air outlet, and one vacuum (VAC) outlet, allowing for complete integration in care areas that require these services.
Advantages and Disadvantages
Advantages:
-
Space Optimization: Thanks to its rotation and swing system, this column enables efficient organization of equipment, improving workflow and providing easy access to equipment and power outlets.
-
Versatility in Configuration: It offers a standard configuration with oxygen, air, and vacuum outlets, along with electrical outlets, trays, and additional shelves, allowing it to adapt to diverse needs.
-
High Load Capacity: With a load capacity of up to 120 kg, it can support multiple devices, including infusion pumps and other essential patient care devices.
Disadvantages:
-
Initial Cost: The investment in this column may be high for some smaller health centers, although its durability and efficiency justify the long-term cost.
-
Requires Rotation Space: Due to its rotation angle and swing radius, it needs adequate space for installation and use, which may be a challenge in very confined areas.
Field Use
In practical use, the Multipurpose Column YR02075 is a tool that contributes to efficiency in high-demand medical areas, such as intensive care units, surgical rooms, and patient monitoring stations. Its design allows medical devices to be kept organized and available in a single access point, facilitating healthcare professionals’ work. The presence of medical gas outlets and multiple integrated power outlets on the column enables quick and safe connections, reducing setup time and increasing efficiency in emergency situations.
Usage and Maintenance Recommendations
To ensure the best performance of the Multipurpose Column YR02075, it is recommended to periodically check the braking system to ensure its proper functioning and inspect gas and electrical connection points. Keeping attachments, such as trays and shelves, free of obstructions and in good condition also contributes to better organization. Regular cleaning of the column and outlets ensures a safe work environment and prolongs the equipment’s lifespan.
The Multipurpose Column YR02075 is a strategic investment for any medical center looking to improve workspace and optimize patient care. https://kalstein.net/en/ If you are interested in receiving more information or a personalized quote, you can easily do so through Kalstein Plus, a platform that allows you to obtain a budget tailored to your needs quickly and efficiently. https://kalstein.net/en/product/multipurpose-column-yr02075/
