Infant Bilirubin Phototherapy Unit
Phototherapy is a therapeutic measure that is carried out through phototherapy units, equipment that uses electromagnetic radiation (light) for the treatment of neonatal jaundice, in order to reduce the severity of neonatal hyperbilirubinemia. The administration of phototherapy will depend on bilirubin levels, age of life, gestational age at birth, birth weight, cause of jaundice and clinical status of the newborn.
An infant bilirubin phototherapy unit is a medical instrument commonly consisting of 4 blue light tubes and 2 white light tubes, and a cover or shield that protects the newborn in case of breakage of the tubes and ultraviolet light. The blue tubes are placed in the center and the white tubes on the sides. At present, these phototherapy lamps are made up of fluorescent and LED bulbs used for neonatal treatment.
At Kalstein you can find the ideal Children's Bilirubin Phototherapy unit for your Hospital
There are a myriad of models, so it's not uncommon to not know which Children's Bilirubin Phototherapy Unit to buy to meet your needs. At Kalstein, we evaluate them so you can find what you are looking for.

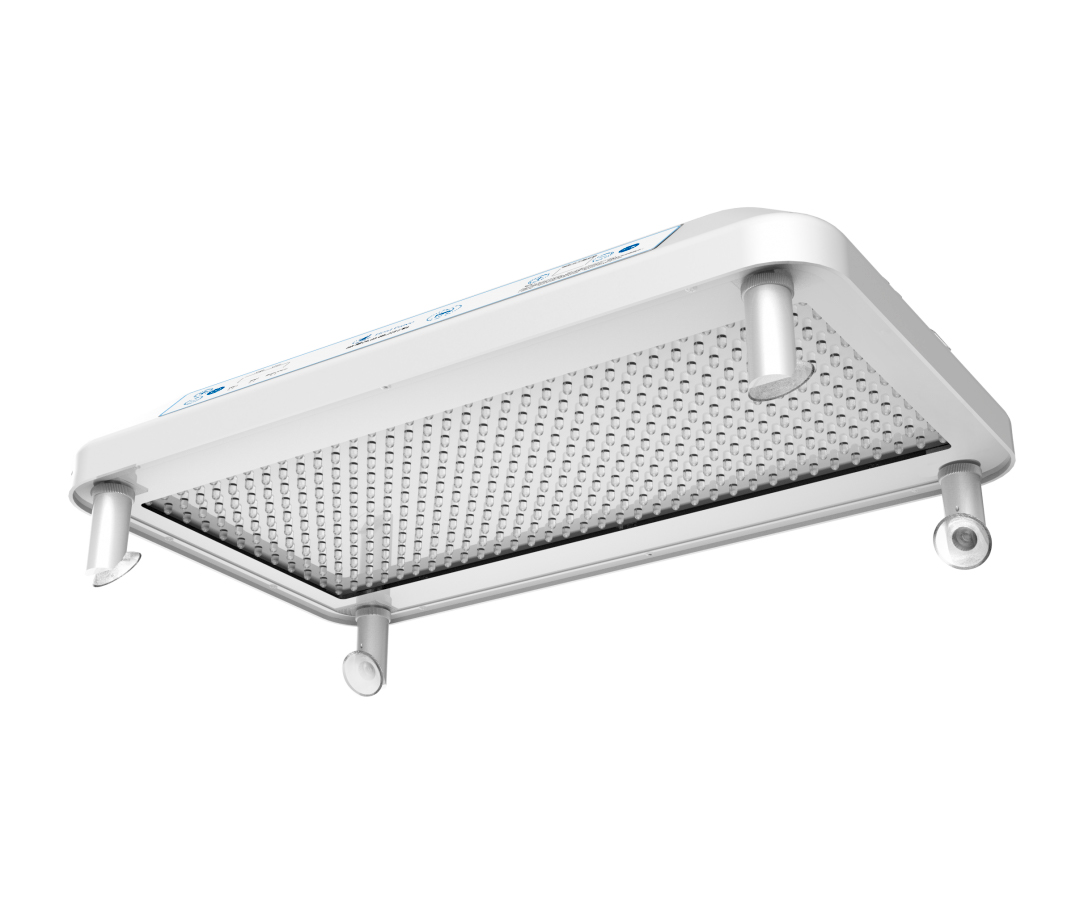

Infant bilirubin phototherapy unit YR02195
This model has 4 suction cup legs for attachment to an incubator.LEDs as phototherapy radiating elements. Fanless design for a quiet atmosphere.

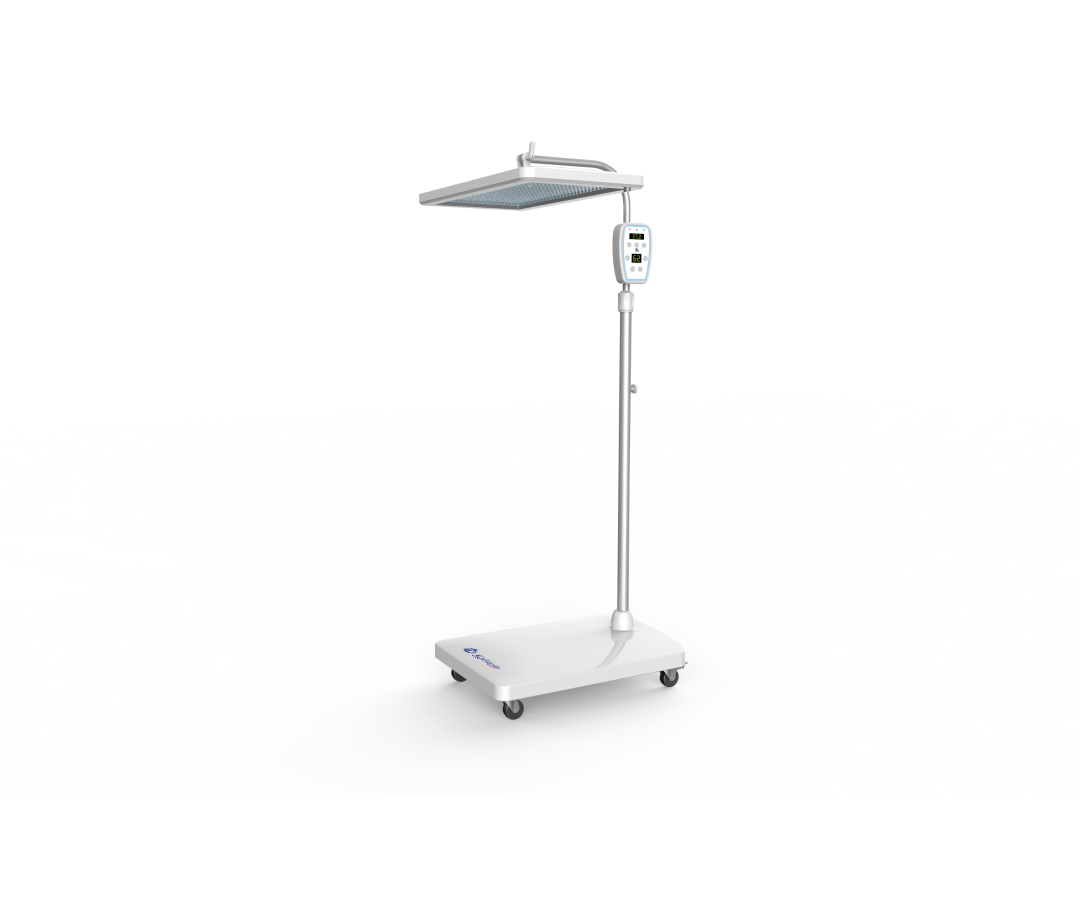

Infant bilirubin phototherapy unit YR02194
LED fluorescent lamp as phototherapy radiating elements. The curing angle of the lamp can be adjusted horizontally...
Our Best Selling Children's Bilirubin Phototherapy Unit
-
This model has 4 sucker legs in order to be fixed on an incubator.
- LED as the phototherapy radianting elements
- No-fan design for a silent atmosphere
- Big area light source for better cure
- Able to use with most of other types of baby incubators
| Model | YR02195 |
| Irradiation source | Led light |
| Irradiation wavelength range (300 ~ 550) nm | • |
| Irradiance adjustable from 1 to 99 levels | 3 000 uw / cm2 |
| Time calculator | • |
| Countdown | • |
| Total time | • |
| Display range 0 – 9999 h | • |
| Adjustable working height | • |
| Effective shelf life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Energy consumption | ≤ 50W |
| AC motor | • |
| Function | |
| Irradiation wavelength range | 400 ~ 550nm |
| Adjustable irradiation intensity (max.) | 3 000 uw / cm² |
| Wavelength of wave crest | 460nm |
| Irradiance adjustable from 1 to 99 soft | • |
| Hourly | • |
| A fixed time | • |
| Time totalizer | • |
| Display range (hour) | 0 – 9 999h |
| Structural parts | |
| Adjustable in vertical height | N / A |
| Useful life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Dimension | N / A |
| Electric parts | |
| Power supply | AC (220 ± 22) V (50 ± 1) Hz |
| Energy consumption | ≤50W |
| Room temperature | 10 – 40 ° C |
| Relative humidity | ≤80% |
| Motor | AC |
Analysis of the best Children's Bilirubin Phototherapy Units for your Hospital
How does an infant bilirubin phototherapy unit work?
-Equipment
An infant bilirubin phototherapy unit is a medical equipment usually consisting of 4 blue light tubes and 2...
What is the importance of the phototherapy unit??
-Units
Phototherapy is a therapeutic measure that is carried out through phototherapy units, equipment that uses electromagnetic...
Incubators with phototherapy lamp, what are the consequences of their use?
Incubators for newborns (neonatal) are medical devices used to provide an environment in which essential...
Children's phototherapy incubator at Kalstein France
-Hospital
Newborns with alterations in bilirubin (Bb) or hyperbilirubinemia require special care, due to the problems they may...
Catalog of models of Children's Bilirubin Phototherapy Unit on offer
Guide for you to become an expert in Children's Bilirubin Phototherapy Unit
Here are some articles about Children's Bilirubin Phototherapy Unit that might be useful for you to learn more about the products you are looking for at Kalstein.
Neonatal incubator with phototherapy lamp
The neonatal incubator with phototherapy lamp is a device used to give life support, isolate and provide..
Maintenance of a phototherapy incubator
Phototherapy incubators are medical equipment designed to manipulate the newborn without removing him from the...
Neo-Natal Incubator And Different Types Of Phototherapy
This type of device is intended to offer the full-term or premature newborn a warm and safe environment, where its vital...
Early Intervention Phototherapy Study to Prevent Bilirubin Toxicity
Phototherapy is an innovative treatment that is increasingly being used to prevent the toxicity of bilirubin in newborn babies, is designed to reduce levels of bilirubin in the blood, a toxic substance produced by the liver that if not reduced in time in newborns can lead to brain damage or permanent brain damage.
Frequently Asked Questions from our customers about the Children's Bilirubin Phototherapy Unit
How to know the prices of the Children's Bilirubin Phototherapy Unit?
To know the price of the Children's Bilirubin Phototherapy Unit we invite you to send us an email with your request using the contact form.
What are the delivery times for the Children's Bilirubin Phototherapy Unit?
The delivery time of your Kalstein product will depend on the following:
- If the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, either air or ocean freight.
- Equipment in stock:
- Delivery Time (Air): 15-30 days.
- Delivery Time (Ocean): 45-60 days.
- Equipment not in stock:
- Delivery Time (Air): 30-60 days.
- Delivery Time (Ocean): 60-90 days.
How to purchase Children's Bilirubin Phototherapy Unit?
You can make your purchase through:
- By e-mail: sales@kalstein.eu
- By phone: +33 (0) 1 78 95 87 02
- E-commerce: Through the official Kalstein website in your country.
How does the warranty work?
All Kalstein equipment is warranted for 1 year against manufacturing defects. The warranty does not cover damage caused by improper installation or operation by the user, transportation defects or by uses other than those specified by the manufacturer. The warranty excludes electrical parts or consumables. For more information visit our "terms and conditions" by clicking HERE.
At Kalstein we make it easy for our customers to receive inductions and technical support through new online methods. You can visit our video inductions, technical assistance and guidance provided by a Kalstein team through our Youtube channel. HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein equipment of your interest directly from our official website. Once you have identified the model of your choice, click HERE.
