Power Supply
A power supply for electrophoresis is an electrical equipment whose function is to manage the current in a constant and direct way to the electrophoresis system, as well as to indicate and control both the supply voltage and the current consumption.
This device acts as a transformer, rectifier and as a regulator at its output, to avoid voltage peaks that damage the electrophoresis system. Electrophoresis is a technique based on the migration of molecules through a gel or matrix of porous nature, to which an electric field is applied, to separate these molecules according to their size or molecular weight, thanks to the action of a power source for electrophoresis chambers, since this component is responsible for providing the electric field necessary to move or mobilize the molecules.
![YR03403-IMG-480x288](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03403-IMG-480x288-1-450x288.webp?strip=all&lossy=1&ssl=1)
Types of Lab Power Supply a Lab May Need
![YR03411-IMG-480x288](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03411-IMG-480x288-1-450x288.webp?strip=all&lossy=1&ssl=1)

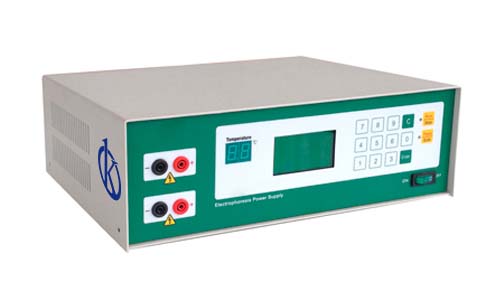

High-voltage Power Supply
- Molded housing, touch keys, intelligent microprocessor control;
- With automatic memory function;
- With standard timing operation function;
- Automatic detection of no load, overload and overload.
Kalstein electrophoresis power supplies are specially designed to work with horizontal and vertical electrophoresis chambers. They have microprocessors that control their operation. The power supplies allow working at constant voltage and also have a timer to work at specific time periods during which the process can be stopped and resumed later.
Universal Power Supply
A power supply for electrophoresis systems acts by converting the alternating current coming from the power supply into direct current, and distributes it to the devices that request it. That is why it acts as a transformer, rectifier and as a regulator in its output, to avoid voltage peaks that damage the system.
The power of the electrophoresis power supply is designed for use in the separation of DNA, RNA and proteins. Therefore, failures in the power supply of the electrophoresis system can in turn generate failures in the execution of the technique, which is why it is necessary to make sure that the power supply works correctly and that its capacity is sufficient to cover the energy needs of all the internal components of the system.
![YR03399-IMG-1-480x288](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03399-IMG-1-480x288-1-450x288.webp?strip=all&lossy=1&ssl=1)
In Kalstein you can find the ideal Power Supplies for your Laboratory
![YR03411-IMG-1 (1)](https://www.kalstein.be/wp-content/uploads/2023/07/YR03411-IMG-1-1.webp)

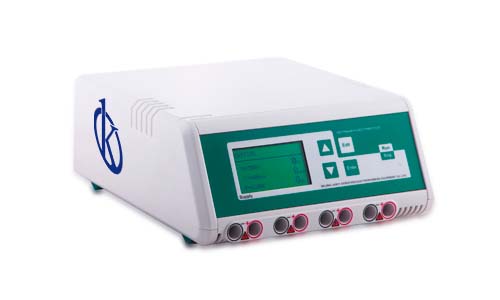

High current Universal Power Supply YR03400
With constant voltage, constant current, constant power, malfunction, intelligent warning functions...
![YR03396-IMG-500x300](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03396-IMG-500x300-1-350x250.webp?strip=all&lossy=1&ssl=1)
Universal Power Supply YR03396
With step-by-step control function (10 editable groups, each group of up to 10 operating programs of...
![YR03400-IMG-1](https://www.kalstein.be/wp-content/uploads/2023/07/YR03400-IMG-1.webp)
High-current Universal power supply YR03395
Automatic detection of no load, overload, short circuit, fast change of resistance, earth leakage and...
![YR03396-IMG-500x300](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03396-IMG-500x300-1-350x250.webp?strip=all&lossy=1&ssl=1)
Universal Power Supply YR03397
With step-by-step control function (10 editable groups, each group of up to 10 operating programs of...
Our Best Selling Power Supply
- Touch keys, dual core microprocessorintelligent control;
- 0-9 digital button, make the operation more simple and convenient;
- Indicate the preset value and the actual output value at the same time;
- It can store 100 electrophoresis methods;
- With automatic memory function;
- With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);
- With a pause control function (including real-time tuning)
- With standard, timing, V-hr, step-by-step operation function;
- With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;
- Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.
Model | YR03399 |
Type of Output | Constant-Voltage, Current or Power |
Increment | 1V, 1mA, 1W |
Output Range | 10–600V, 1–500mA, 1–300W. |
Timer Range | 1min~99hr, 59min |
V-hr Range | 1~99999V-hr/ Increment 1V-hr |
Display | LCD display with backlight |
Output jacks | Four sets of output jacks |
![YR03399-IMG-480x288](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/YR03399-IMG-480x288-1-450x288.webp?strip=all&lossy=1&ssl=1)
Power Supply Model Catalog on Sale
Guides to Becoming a Power Supply Expert
Why is it important to have a good Power Supply in the Lab?
It is essential to have a safe and reliable power supply in the laboratory, as this is the key.
Tips for Buying a Quality Laboratory Power Supply
With a laboratory power supply, researchers perform tests, experiments and measurements.
Sources of power: when necessary for use in a Laboratory
They are necessary in laboratories, because they are devices or equipment that are capable.
Parts and care of a Power Source for Electrophoresis
A power source for electrophoresis is an electrical equipment that has the function of managing the current in a constant and direct way.
![15x16,03 cm (1)](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2023/07/15x1603-cm-1-1-80x91.png?strip=all&lossy=1&ssl=1)
Frequently Asked Questions about Power Supplies
How to know the prices of Power Supplies?
To know the price of Power Supplies we invite you to send us an email with your request through the contact form.
What are the delivery times for Power Supplies?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Power Supplies?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1 year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or use other than those specified by the manufacturer. The warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein we provide our clients with inductions and technical support through new online methods. You can visit our videos of inductions, technical assistance and guidance provided by a Kalstein team through our Youtube channel (Kalstein English).
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
