Colorimeter
Colorimeters carry out quantitative and qualitative measurements of colors, including parameters such as saturation, hues and luminosity, as well as perception, quantity and depth, based on the Beer-Lambert law, according to which the absorption of light transmitted through the medium is directly proportional to the concentration of the color light medium to the measuring device. This analyzes the color compared to an existing standard, and then a microprocessor then calculates the absorbance or transmittance percentage, so the computer measures the absorbance or transmittance percentage, both measures of how much light of a particular color is transmitted by an object or solution.
The radiant energy of the light source is influenced on the object or solution, the reflected radiant power passes through one of the three tristimulus filters and falls on the photodetector, generating a response proportional to the corresponding tristimulus value of the object-source combination; subsequently, these raw data are transferred to a microprocessor for the calculation of the absolute tristimulus values. That is, the colorimeters determine the color as a function of the red.
Types of Colorimeter a Laboratory May Need
Spectrocolorimeter
In Kalstein you can find the ideal Colorimeter for your laboratory
Precision Colorimeter YR05506 // YR05508m
precision colorimeter features with 8/d structure that is very precise. 8mm measurement aperture makes...

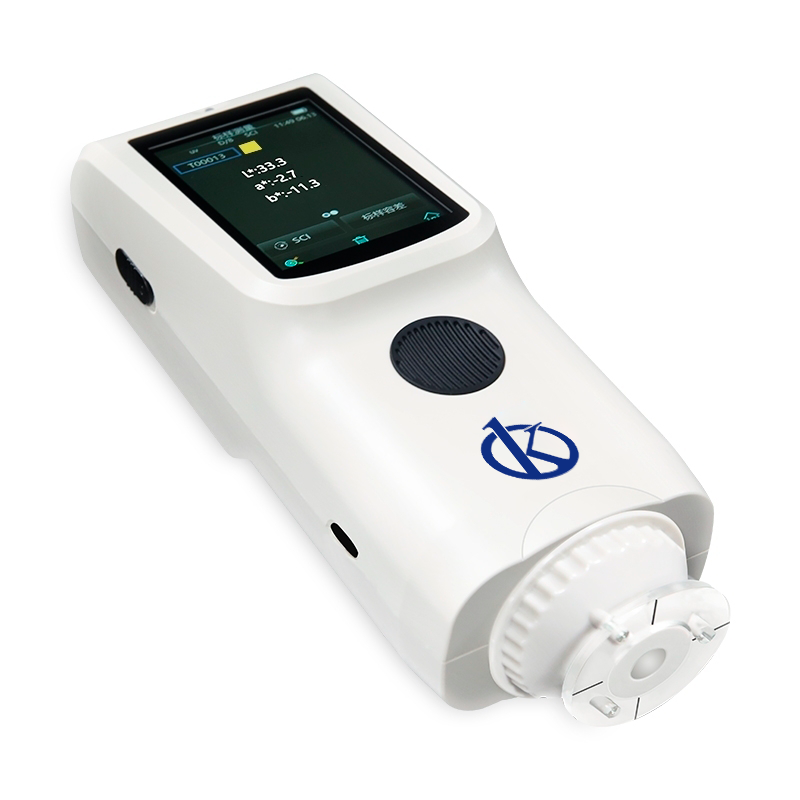

Spectrocolorimeter YR05518 – YR05519
YR05516 // YR05519 is Kalstein using autonomous core technology research and development of A portable...
High cost-effective portable colorimeter YR05514
ln response to the market demand for low price and high cost performance products, Kalstein has developed...
Spectrocolorimeter YR05516 – YR05517
YR05516 // YR05519 is Kalstein using autonomous core technology research and development of A portable light ...
Our Best Selling Colorimeter
- Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
- Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
- Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Handheld design: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- High cost performance: large output, good quality, cheap products.
Model | YR05513 |
Illuminating/Viewing Geometry | 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978. |
Illumination | LED white light |
Detector | Silicon photoelectric diode |
Measuring Aperture | Φ8mm flat aperture; Φ4mm tip aperture |
Color Space | CIE LAB |
Color Difference Formula | ΔE*ab |
Observer Angle | CIE 10° |
Light Source | D65 |
Displayed Data | Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time | 1.0s |
Repeatability | Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate) |
Errors Between Each Equipment | Within ΔE*ab 0.4 |
(Average for 12 BCRA Series II color tiles) | |
Dimension | 205×67×80 mm |
Weight | 500g |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | TFT 2.8 inch |
Interface | USB |
Data Memory | 100pcs standards 10000pcs samples |
Operating Environment | 0~40℃(32~104°F) |
Storage Environment | -20~50℃(-4~122°F) |
PC Software | No |
Standard Accessory | Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
Optional Accessory | Micro Printer, powder test box |
Notes: The specifications are subject to change without notice. |
Analysis of the best Colorimeter for your laboratory
What is a colorimeter?
A colorimeter is a device used to measure and analyze colors. Currently, thanks to technological development...
Why is a colorimeter important in the lab?
A colorimeter in the laboratory is considered a very effective tool when identifying a color and its hue, since...
Features and applications of colorimeters
Colorimeters are instruments used to measure and analyze colors. Specialized color measurement equipment...
Colorimeter maintenance and care
A colorimeter is a device used to measure and analyze colors, this device allows to identify colors and their...
Catalog of Colorimeter models on offer
-
Precision Colorimeter YR05512
-
High cost-effective portable colorimeter YR05514
-
Precision Colorimeter YR05509
-
Precision Colorimeter YR05506 // YR05508
Select options -
High cost-effective Portable Colorimeter YR05515
-
Precision Colorimeter YR05510
-
Spectrocolorimeter YR05516 – YR05517
Select options -
Spectrocolorimeter YR05518 – YR05519
Select options
Guides to become an expert in Colorimeter
Absorbance? Wavelength?
Colorimeters are equipment used to measure and analyze colors, through measurements “tristimuli” that are.
What are the types of colorimeters?
Colorimeters are instruments used to determine the exact composition of a color, because they have the ability to ...
What is the function of a colorimeter?
A colorimeter is an instrument used to measure and analyze colors. In other words, a colorimeter makes it possible ...
Differences between spectrocolorimeters and colorimeters
Today colors play a fundamental role in our lives. However, unlike other parameters such as weight or length, there is no physical scale for measuring color, making it nearly impossible for people to respond in kind when asked about a specific color..
Frequently Asked Questions about Colorimeter
How to know the prices of the Colorimeter?
To know the price of the Colorimeter we invite you to send us an email with your request through the contact form.
What are the delivery times of the Colorimeter?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Colorimeter?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
