Pathological Anatomy
The main objective of pathological anatomy is not only to study the evolution and causes of a disease, but also to make a prognosis of the effects that different diseases can have on human beings. To do this, tumor cells and body tissues are analyzed.
Thus, within pathological and cytodiagnostic studies, two types of tests are differentiated: pathological and diagnostic. In the first of them, a sample of the tissue of any organ is analyzed with the intention of identifying the type of cell and what treatments would be useful to combat the alteration. As for diagnostic tests, they are also known as biopsy and their main objective is to obtain a sample of organic fluid or tissue to study the existence of a disease, with the intention of determining a specific diagnosis.
Types of Pathology a Laboratory May Need

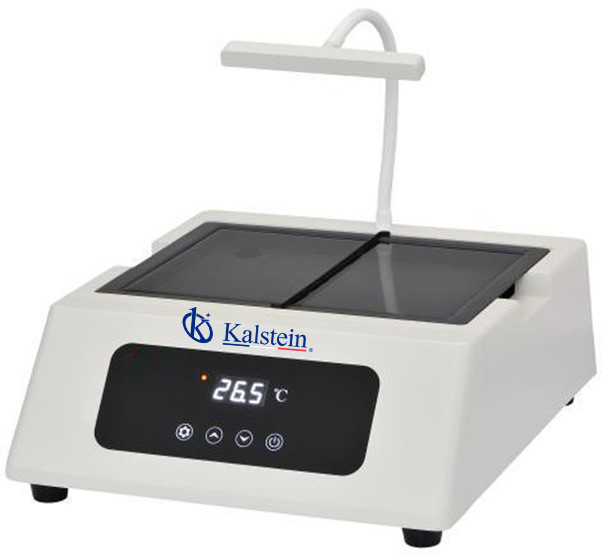

Tissue water bath
Water baths are a very common element in any type of microbiological laboratory. This type of equipment is a container that is capable of holding hot water to incubate samples in water at constant temperature for a prolonged period. Water baths usually have an interface that allows the user to set the correct temperature to achieve the desired results.
There are some essential steps in a histology lab. The sectioning process is one of the most important, as this procedure has to be very precise and the blocks you are cutting should not be broken in any way. When the cutting process begins, the first thing to do is to cool the paraffin blocks to make the correct cut. Then the blocks are placed in the bathroom and programmed to the desired temperature, being a fundamental step in the whole procedure.

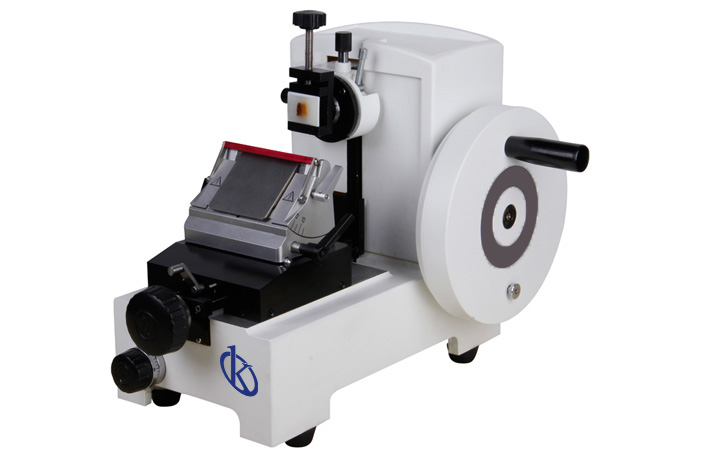

Microtomes series
A microtome is a laboratory equipment that allows obtaining thin sections of tissue with a micrometric thickness that can be used later for microscopic study. This equipment is equipped with steel, glass or diamond blades, depending on the type of sample to be cut and the thickness in which the sections of fabrics are needed.
Pathology is a science that studies the pathophysiological and morphological alterations of a disease. That is, it studies the disease at the organic, tissue, cellular and molecular levels. For which it employs highly specialized equipment, among them we have the microtome and the cryostat.
In Kalstein you can find the equipment of Pathology ideal for your laboratory

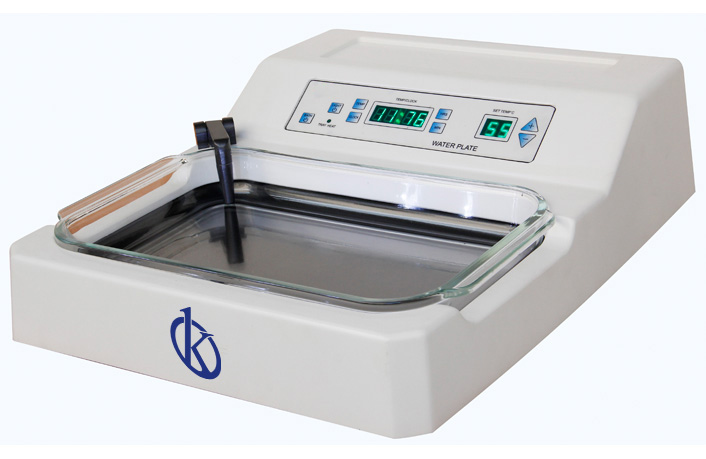

Flotation Water Bath (Water Bath/slide dryer) YR457
Pure-green digital screen for real-time monitoring of heating temperature, direct and clear, easy to operate; all...

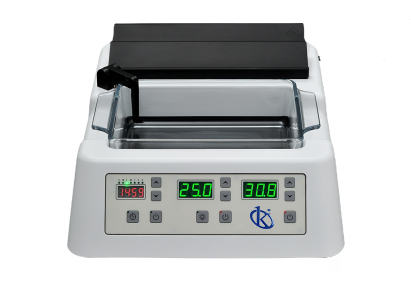

Floatation Workstation (Water Bath/slide dryer) YR456
Pure-green digital screen for real-time monitoring of heating temperature, direct and clear, easy to operate; all...

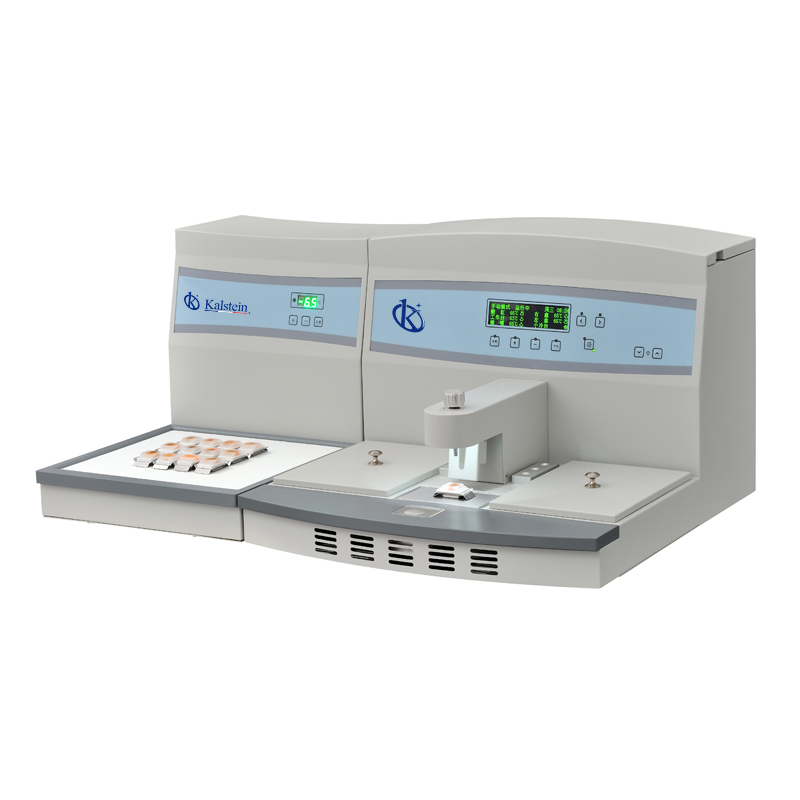

Biological tissue freeze embedding machine
The integrated temperature measurement block imported from the United States has high precision and reliable...

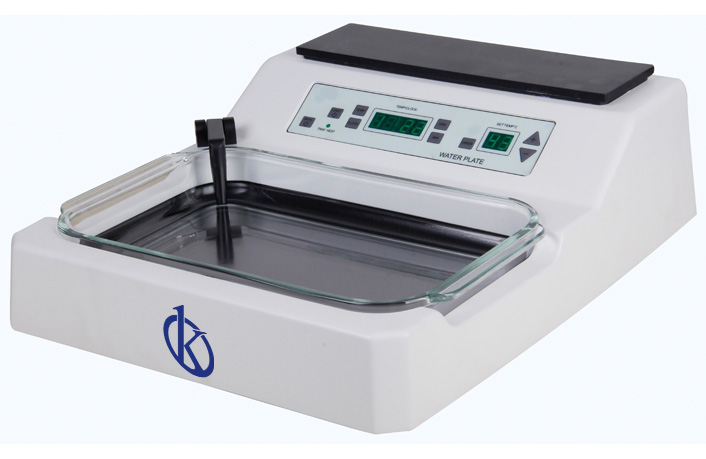

Flotation work station YR4522
High-quality Tissue flotation station YR452 with keyboard control, microcomputer automatic memory, LED ..
Our best-selling Pathology team

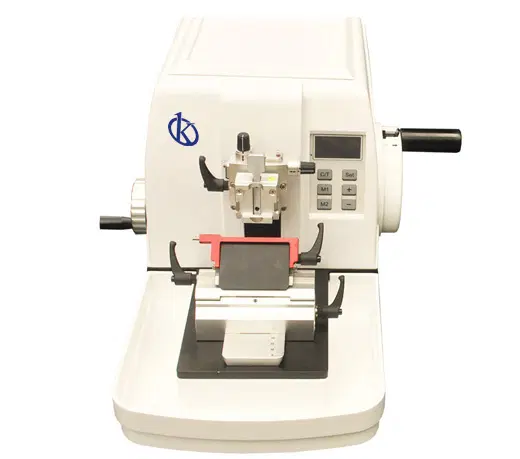

- Pure-green digital display of slice thickness, trimming thickness, slice count and slice speed;
- Trimming and slicing are operated under a control system, and can be switched easily. The automated slicing controller can be equipped at either the left or right side; when automated slicing controller is off, semi-auto slicing or trimming can still be performed;
- Automatic sectioning speed is continuously adjustable
- With safety and emergency braking systems, security alarm systems, driver overload protection and an auto-sleep protection system;
- Features easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
Model | YR415-1 |
Type | Rotary |
Mode of use | Automatic |
Maximum Specimen Size | 70 x 70 mm |
Minimum Setting of Sectioning Thickness | 0.25μm |
Horizontal Feed | 28mm |
Vertical Specimen Stroke | 70mm |
Specimen Holder Rotation | At any angle within 360 degrees |
Movement Range of the Base of Blade Holder Base |
0-60mm (front to back) |
Movement Range of the Blade Press plate | 0-23mm |
Specimen Clamp Rotation | At any angle within 360 degrees |
Specimen Orientation | XY – 8° |
Maximum Specimen Size | 70×70mm |
Feed speed adjust | 1500μm/s ~ 3500μm/s |
Precision Error | ±1% |
Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
Power | 150W |
Dimensions | 580× 475× 340 mm (W×D×H) |
Net Weight | 41kg |
Analysis of the best Pathology for your laboratory
What is a cryostat?
The cryostat is a piece of equipment used in the processing of samples for histological or histopathological...
Tissue water bath
Water baths are a very common element in any type of microbiological laboratory. This type of equipment is a container...
What is pathological anatomy?
Pathological anatomy is the science that studies the pathophysiological and morphological alterations of the...
Microtome and bone cutting
The microtome is a mechanical instrument used to cut biological samples into very thin segments for microscopic...
Guides to Becoming an Expert in Pathological Anatomy
Tissue Processor and Tissue Inclusor
The tissue processor is a piece of equipment used in pathological anatomy and in histology laboratories to remove water...
Tissue processing for histological studies
Tissue processing is a very important part of any histology laboratory, and begins with obtaining the tissue under study...
What are the parts of the Microtome?
A microtome is a specialized medical device that is used to take extremely thin slices of tissue for further study ...

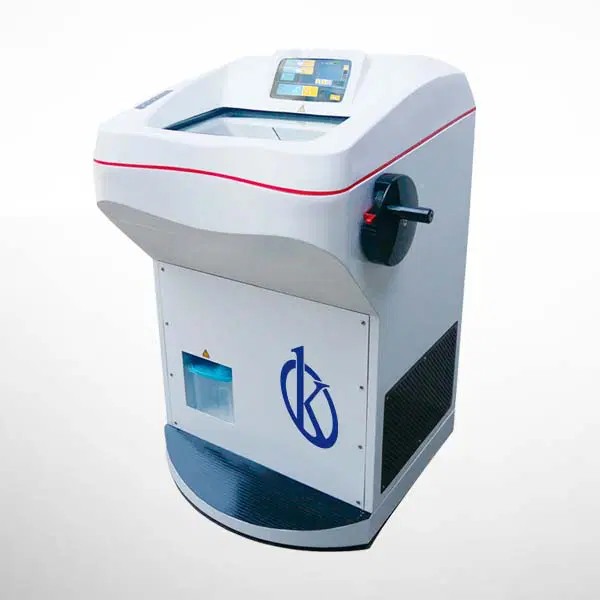

Pathological anatomy: microtomes and cryostats
Pathological anatomy is a science that studies the pathophysiological and morphological alterations of a disease. That is, it studies the disease at an organic, tissue, cellular and molecular level. For which it uses highly specialized equipment, among them we have the microtome and the cryostat...
Video of a Pathology Team in Operation
Its basic function is to be able to meet the requirements of medical professionals in terms of histopathological analysis of the various tissues and the expression in them of the various diseases that affect humans. The procedures carried out within a pathology laboratory are grouped into two distinct phases: technical processing and diagnostic processing.
Pathological Anatomy Team in operation
The cryostat rotating and cutting mechanism is located inside a refrigerated chamber, at a temperature between -20 and -30 °C. In this chamber is the sample, the blade and is where the sections are collected, process by which the sections are glued to a slide. Freezing is usually done on a platform inside the chamber itself cooled by Peltier's system. The tissue can also be frozen externally as quickly as desired, e.g. with liquid nitrogen, but it is advisable to place the sample in the cryostat chamber until it can match its temperature to that of the cryostat to obtain homogeneous sections.
Before freezing, the sample is embedded in a medium that is liquid at room temperature and solid at the cutting time. Therefore, we have our sample in a solid block, embedded but not included. This allows the sample to be manipulated and attached to a sample holder, which will be fixed to an axis that advances on the blade.
Frequently Asked Questions about Pathology
How to know the prices of the pathology equipment?
To know the price of the pathological anatomy equipment we invite you to send us an email with your request through the contact form.
What are the delivery times of the pathological anatomy teams?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Maritime): 60-90 days.
How to make a purchase of Pathology equipment?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E.commerce: Via Kalstein's official website in your country
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
