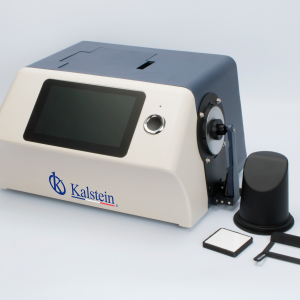

In the competitive world of quality control, precision is essential. The YR05479 desktop color haze meter is specifically designed to provide accurate data when measuring transmittance and haze across a wide range of materials. This device is an essential ally in industries such as glass processing, plastics, film manufacturing, and display screen packaging. Its innovative design, combined with advanced optical geometry and a high-resolution CMOS detector, ensures consistent and reliable results in the laboratory.
This meter complies with key international standards like ASTM D1003/1044 and CIE No.15, ensuring that the data obtained is comparable and valid for various applications. From liquid pharmaceutical product analysis to quality control in manufacturing plants, the YR05479 not only measures haze and transmittance but also provides a wide range of colorimetric data and color charts that help users evaluate the visual quality of products. Additionally, its intuitive user interface with a 7-inch TFT touchscreen makes it easy to navigate and store up to 5000 data entries, with the option to expand to 20,000 samples for later analysis.
Technical Specifications
| YR05479 Benchtop Color Haze Meter | |
| Model | YR05479 |
| Optical Geometry | Transmittance:d/0 (diffused illumination, 0-degree viewing angle);similar to CIE15 standard 0/0(parallel illumination, 0-degree viewing angle);Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7 |
| Application | wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc. |
| Intergrating Sphere Size | Φ154mm |
| Light Source | 360~780nm Combined LED Lamp |
| Spectral Separation Device | Concave-Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360~780nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measurement Aperture | Transmittance: Φ25.4mm |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formulas | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Data | Haze (ASTM D1003/1044)，transmittance rate T，WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313),
MI(Matamerism Index )， Color Strength, Staining fastness,Color Strength, Opacity, Pt-Co index and Gardner index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Display Data | Spectral/Values, Chromaticity Values, Color Difference Values/Graph,Color Diagram, Color Simulation, Pass/ Fall Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral transmittance: for test transmission reference white within ΔE*ab 0.05% (400~700nm: within 0.04%);Chromaticity Data: Φ25.4mm,within ΔE*ab 0.03 (after do warm-up and calibration, it is the average value to measure transmission reference white plate for 30 times at 5 second intervals) |
| Inter-instrument Agreement | Φ25.4mm,within ΔE*ab 0.15 (average value for 5 pcs standard transmittance color plates measurement ) |
| Size | 370X300X200mm(L*W*H) |
| Weight | About 9.6kg |
| Power | DC 24V,3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3,000,000 times measurement |
| Screen | 7-inch TFT Capacity Touch Screen Display |
| Interface | USB,Printing Port |
| Storage | Standard:5000; Sample:20000 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, User Manual, QC software(please download from website), USB cable, reflectance white and black board, transmittance black board, 25.4mm aperture, transmissive test component |
| Optional Accessory | Miniature- printer |
| Note | The specifications are subject to change without notice. |
Market Price
The price of a desktop color haze meter like the YR05479 varies depending on its technical features and accompanying accessories. In the market, such products typically range between $8000 and $9,000 USD, depending on the brand and additional measurement capabilities. The YR05479, offering a combination of precision, international standard compliance, and a modern interface, is positioned at the higher end of this range, providing an excellent balance between price and performance.
Frequently Asked Questions
Which industries benefit the most from the YR05479 meter?
This device is especially valuable in industries where visual quality control is critical, such as glass manufacturing, plastics, film production, and display screen packaging. It is also used in laboratories for analyzing liquid pharmaceutical products.
How does it ensure accurate measurements?
The YR05479 uses a dual-matrix CMOS sensor with 256 image elements and a combined LED light source with a wavelength range of 360 to 780 nm, ensuring high repeatability and accuracy in color and haze measurements.
Is it easy to operate and maintain?
Yes, the device features an intuitive touchscreen interface and comes with quality control software downloadable from the website, making it easy to operate. Its light source has a lifespan of over 3,000,000 measurements.
Advantages and Disadvantages
Advantages:
-
High precision in color and haze measurements thanks to its advanced CMOS sensor and light source.
-
Compliant with numerous international standards, such as ASTM D1003 and CIE No.15.
-
User-friendly interface with a touchscreen and large data storage capacity.
-
Wide application in various industries such as glass processing, plastics, and pharmaceuticals.
Disadvantages:
-
High price compared to simpler meters.
-
Requires a controlled temperature environment for optimal performance, between 0°C and 40°C.
-
The device’s weight, close to 10 kg, may make mobility challenging in some work environments.
Product Usage in the Field
The YR05479 desktop color haze meter is commonly used in laboratories and manufacturing plants where product quality is paramount. In glass processing, for example, it helps determine the clarity and uniformity of the material, ensuring it meets optical requirements. In the plastics and film industry, the device measures haze to ensure that products have the appropriate transparency according to technical specifications. The data obtained can be critical in validating products before commercialization, preventing costly manufacturing errors.
Additionally, in the pharmaceutical industry, this device is vital for analyzing liquid products, where transparency and color can influence perceptions of quality and purity. Its ability to provide precise measurements under international standards makes it an indispensable tool in quality control laboratories.
Recommendations
To maximize the performance of the YR05479, regular calibration and operation in a controlled temperature environment are recommended. It’s also essential to follow the manufacturer’s guidelines regarding data storage and the maintenance of accessories like the measurement apertures and reference boards. When used in production plants, it is advised to train staff on how to fully utilize its functionality, particularly in terms of viewing color charts and color difference formulas, which are key for detailed analysis.
