Magnetic resonance imaging (MRI) is an essential tool in veterinary diagnostics, allowing detailed images of an animal’s body to be obtained without invasive procedures. The Veterinary Magnetic Resonance Imaging System YR06167 is one of the most advanced options available on the market, offering exceptional precision in diagnostics and more efficient handling of complex cases in various animal species.
Product Description

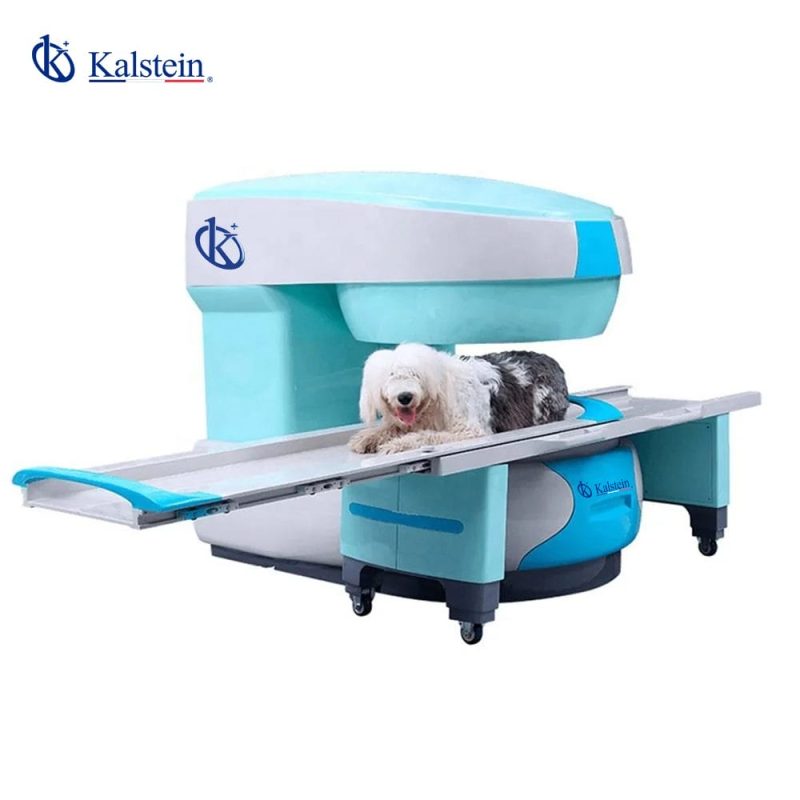

The Veterinary Magnetic Resonance Imaging System YR06167 is designed specifically to provide high-quality images, allowing veterinary professionals to make more accurate and faster diagnoses. This MRI system uses cutting-edge technology to visualize internal structures such as bones, soft tissues, and organs in great detail, which is crucial for treating various animal diseases.
The system’s key features include a powerful gradient coil, a highly precise imaging system, and a design that facilitates handling and maintenance. Its ability to perform quick and efficient scans makes it an excellent choice for veterinary clinics that need fast results without compromising image quality.
Technical Specifications:
| Model | YR06167 | |
|
Magnet System
|
Magnet Type | Permanent magnet with automatic constant temperature system |
| Field strength | 0.35T | |
| Magnet shape | C-shape | |
| Homogeneity(30cm, DSV, Vp-p) | ≤35ppm | |
| Shim method | Active/Passive/Dynamic | |
| Magnet vertical gap | 35cm | |
| Accessibility(Horizontal opening angle) | >250° | |
| 5 Gauss fringe field | 2.5m*2.5m*2.5m | |
|
Gradient System
|
Gradient field strength(Single Axis) | ≥15mT/m |
| Gradient slew rate (Single Axis) | ≥45mT/m/ms | |
| Rise time | 0.3ms | |
| Gradient cooling system(Gradient coils and power electronics) | Air | |
|
RF System
|
Spectrometer | Fully digital |
| RF system type | Digital Transmit and Receive | |
| Number of RF channel | 2 | |
| Transmitter amplifier peak power | 5kW | |
| RF bandwidth of receiver | Each >400KHz | |
| Dynamic range | ≥80dB | |
| Noise factor | 0.3dB | |
| Coil type | Phase array | |
Market Price
The Veterinary Magnetic Resonance Imaging System YR06167 falls within the mid-high price range, making it accessible for veterinary clinics and hospitals looking for advanced technology to enhance diagnostic precision. While prices may vary depending on the supplier and region, this type of equipment typically costs between $682,000 and $683,000 USD. For a personalized quote, it is recommended to contact the supplier directly or generate an automatic quote through the Kalstein Plus platform.
Frequently Asked Questions
Is this MRI system suitable for all animal species?
Yes, the Veterinary Magnetic Resonance Imaging System YR06167 is designed to accommodate a variety of species, from small animals like dogs and cats to larger animals like horses.
Is specialized staff required to operate this equipment?
It is recommended that the equipment be operated by trained veterinary staff in MRI use, but the system is designed to be intuitive and user-friendly.
How long does a full scan take?
Scanning times are fast and may vary depending on the size of the animal and the complexity of the scan, but generally, the scans are faster than those of other similar systems.
Does it require frequent maintenance?
This system is low maintenance, but regular checks are recommended to ensure optimal performance.
Advantages and Disadvantages
Advantages:
-
High precision: Provides detailed images, improving diagnostic quality.
-
Non-invasive: As it does not require invasive procedures, it reduces the risk of complications in animals.
-
Compact design: Easy to install and use in small spaces in veterinary clinics and hospitals.
-
Fast and efficient: Scanning times are reduced, improving the productivity of the veterinary team.
Disadvantages:
-
High cost: While a valuable investment for clinics, the price may be a barrier for some.
-
Requires training: While the system is easy to use, staff need to be trained in operating MRI equipment.
Field Use of the Product
The Veterinary Magnetic Resonance Imaging System YR06167 is used in veterinary clinics for diagnosing a variety of conditions, from musculoskeletal issues to complex neurological diseases. Its ability to provide detailed images of internal organs and tissues allows veterinarians to make more accurate diagnoses and design more effective treatment plans.
In practical situations, this system is used to study the brain, spine, joints, and muscles of animals, accurately identifying issues such as tumors, ligament injuries, degenerative diseases, and more.
Recommendations
To maximize the use of the Veterinary Magnetic Resonance Imaging System YR06167, it is recommended to provide adequate training to all staff who will use the system. Additionally, following the manufacturer’s maintenance guidelines is crucial to ensure that the equipment operates optimally over time.
Additional Tips:
-
Perform regular preventive maintenance to avoid potential failures.
-
Ensure that the space where the equipment is installed is suitable, considering both the electrical installation and the physical space required.
-
Keep the system’s software up to date to take advantage of all available technological improvements.
For more information on how the Veterinary Magnetic Resonance Imaging System YR06167 can benefit your clinic or laboratory, feel free to generate an automatic quote through our Kalstein Plus platform. This way, you will receive a personalized offer based on your specific needs. Place your order today and bring the best of science into your practice!
