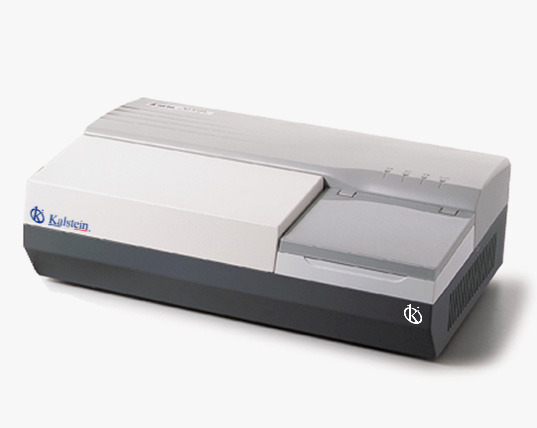

The ELISA Microplate Reader YR06096 is a high-quality device designed for the efficient and precise reading of microplates in ELISA (Enzyme-Linked Immunosorbent Assay) tests. This device has become an indispensable tool for research, diagnostic, and quality control laboratories in various fields, such as biotechnology, pharmacology, and medicine. Its ability to process multiple samples quickly with highly reproducible results makes it ideal for a wide range of scientific and clinical applications.
The device is equipped with advanced technology to offer precise readings across a variety of applications. With its user-friendly interface, the ELISA Microplate Reader YR06096 allows for complex testing with ease, providing reliable results in a short amount of time. This product is perfect for laboratories looking to maximize productivity without compromising the accuracy of their results.
Technical Specifications of the ELISA Microplate Reader YR06096
Below are the most relevant technical specifications for the ELISA Microplate Reader YR06096:
| Model | YR06096 |
| Absorbance Range | 0 – 4.000Abs |
| Resolution | 0.001Abs(displayed),0.0001Abs(calculated) |
| Accuracy | ±0.003Abs |
| Type of Microplate | Standard with 96-well or other kind of microplate and strip |
| Optic System | 8-channel optic fiber system |
| Light Source | Halogen lamp, 6.5V/19W |
| Wavelengths | 405, 450, 492, 630nm, 4 more filters optional |
| Wavelength Accuracy | ±2nm |
| Band Width | ‹8nm |
| Methodologies | End Point, fixed time, Kinetic |
|
Calculation Method
|
ABS, Cut-Off, Single Standard Curve, Multi-Percent, Percent log, Linear, Exponential |
| Power. 4PL Regression | |
| Reading Speed | 6 seconds for 96 well plate(single wavelength) |
| Shaking Plate | Shaking time and speed adjustable |
| Operation | PC operation, bidirectional communications |
| Memory | More than 100 programs, up to 100,000 test results |
| Printer | All printers compatible with Windows |
| Interface | RS-232 |
| Language | English or any language on request |
| Power Supply | AC 100V-240V,50Hz/60Hz |
| Net Weight | 6.2KG |
| Dimensions L. × W × H(mm) | 454 × 295 × 146 |
These specifications highlight the precision and reliability of the ELISA Microplate Reader YR06096, making it an excellent option for laboratories that require high-performance equipment for immunological assays and other biochemical tests.
Market Price
In the current market, the price of the ELISA Microplate Reader YR06096 varies depending on the supplier and any additional features they may offer. Generally, the price range is between $ 1,840 and $ 1,800, depending on the conditions and warranty provided by the seller. It is advisable to request a detailed quote for an accurate estimate, as well as explore financing options and volume discounts.
This equipment is a significant investment, but its precision and durability ensure that laboratories will achieve a positive return in the long term, optimizing their processing capacity and improving the quality of the results obtained.
Frequently Asked Questions
Is the ELISA Microplate Reader YR06096 compatible with all ELISA microplates? Yes, the device is compatible with standard 96-well microplates, making it versatile and suitable for a wide range of ELISA tests.
Is the ELISA Microplate Reader YR06096 easy to use? Absolutely, it features an intuitive interface and high-resolution LCD screen, making it easy to operate even for users with no prior experience with this type of equipment.
What kind of maintenance does the ELISA Microplate Reader YR06096 require? The device requires basic maintenance, such as periodic cleaning and calibration to ensure accurate readings. It is recommended to follow the manufacturer’s instructions to extend the equipment’s lifespan.
Does the ELISA Microplate Reader YR06096 include software for results analysis? Yes, the device comes with specialized software for analyzing and storing data, enabling efficient management of the obtained results.
Advantages and Disadvantages
Advantages:
-
High accuracy: With a sensitivity of 0.0001 Abs, it provides highly reliable results.
-
Ease of use: Its intuitive interface and LCD screen make operation straightforward and accessible for any user.
-
Versatility: Compatible with 96-well microplates, ideal for a wide range of biochemical and scientific tests.
-
Advanced technology: The device uses cutting-edge technology to ensure fast and precise results.
Disadvantages:
-
High price: Although the cost is competitive for its performance, the price may be a barrier for some laboratories with limited budgets.
-
Dependence on regular calibration: To maintain accuracy, periodic calibrations are necessary, which may require time and technical knowledge.
Product Use in the Field
The ELISA Microplate Reader YR06096 is primarily used in research and diagnostic laboratories for performing ELISA tests. This type of test is crucial for detecting various biological substances, such as antibodies, antigens, proteins, and hormones. Laboratories in fields such as biotechnology, pharmacology, and medicine commonly use this equipment for analyses in areas like infectious disease diagnosis, biomarker research, and pharmacological therapy evaluation.
For example, in a clinical laboratory, it can be used to analyze patient samples and detect the presence of specific antibodies, which is essential for diagnosing autoimmune diseases or viral infections. In scientific research, the device can be used to study molecular interactions, thus advancing areas such as molecular biology and genetic engineering.
Recommendations
To obtain the best results with the ELISA Microplate Reader YR06096, it is recommended to follow some maintenance and operating guidelines. First, ensure that the device is regularly calibrated to maintain its accuracy. Additionally, always use high-quality microplates to guarantee reliable readings. Proper cleaning of the equipment, especially the reading surfaces, is essential to avoid contamination and errors in results.
Although the device is easy to use, it is recommended to provide basic training to users to maximize the use of its functions and advanced capabilities. If you are in the process of acquiring this equipment, take advantage of automatic quote tools through the Kalstein Plus platform to get a personalized estimate and optimize your purchase.
