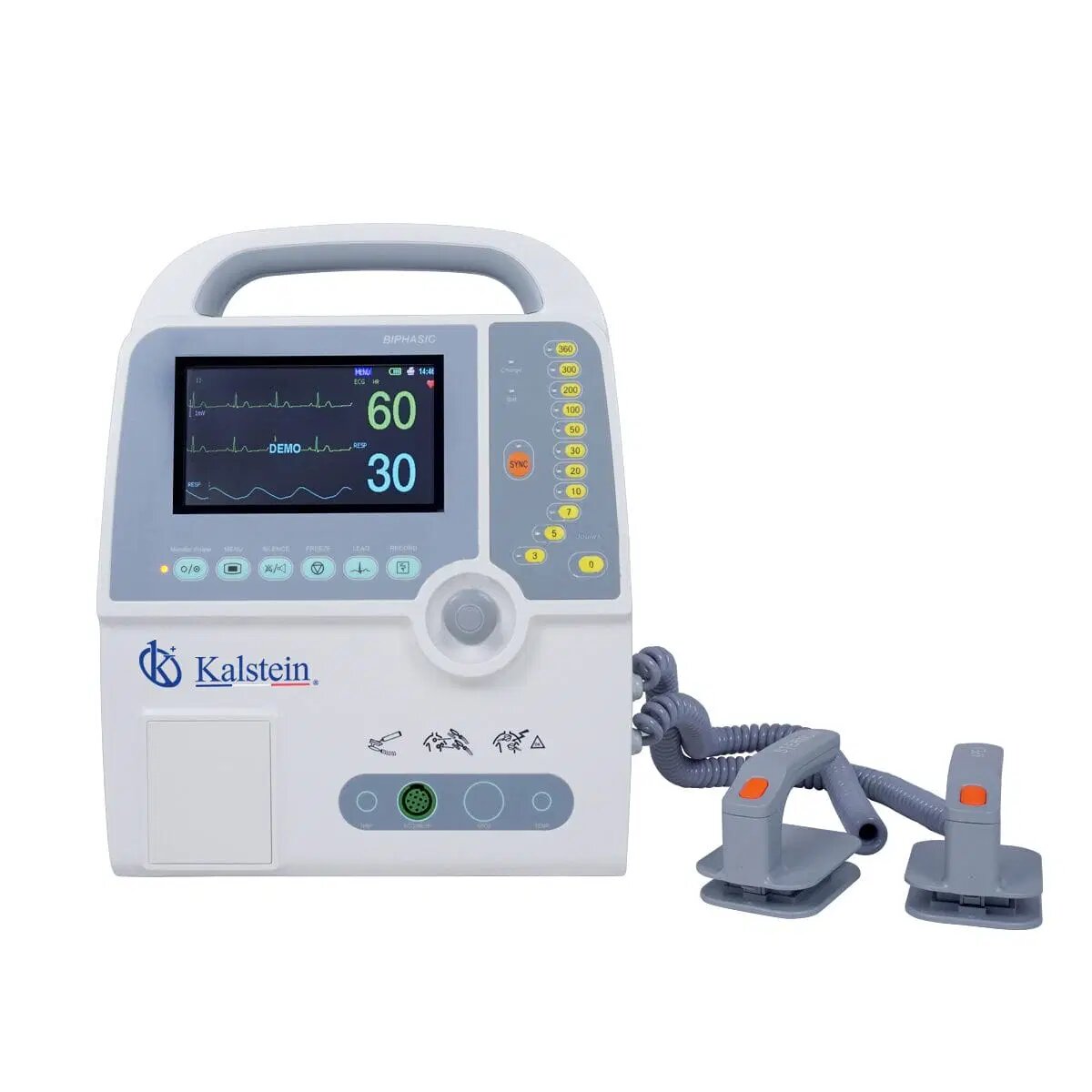

The YR06111 Biphasic Veterinary Defibrillator Monitor is a complete solution for veterinary clinics that need precise and reliable resuscitation and monitoring equipment in critical situations. With its 7-inch high-resolution TFT color screen, this device provides detailed real-time data display, including heart rate and energy level. Equipped with biphasic defibrillation technology, the YR06111 offers multiple defibrillation modes—synchronized and asynchronous—with a charging time of less than 10 seconds to reach up to 360 joules, optimizing response in veterinary emergency settings.
Technical Specifications for the YR06111 Veterinary Defibrillator Monitor
| Model | YR06111 | |
|
Display
|
Screen Type | High-resolution display, TFT color display |
| Screen Size | 7 inches (17.7cm) diagonally | |
| Sweep Speed | 12.5/25/50mm/sec | |
| Information | Heart Rate, Lead, Alarm On/Off, Delivered Energy | |
| Resolution | 800×480 | |
|
ECG
|
Patient Connection | 3-lead ECG cable, or 5-lead ECG cable, paddles |
| Lead Selection | Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V | |
| ECG Size | 2.5,5, 10, 20, 30 mm/mV display on monitor | |
| Heart Rate | 20-350BPM | |
| Protection | With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation | |
|
Defibrillator
|
Waveform | Biphasic |
| Defibrillator type | Manual External Synchronous/Asynchronous Defibrillation | |
| Charge Time | Less than 10 seconds to 360 Joules | |
| Energy Display | Monitor display indicates both selected and delivered energy | |
| Charge Prompt Type | Voice and visual prompts | |
| Energy Selection | Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules | |
| Standard Adult/Pediatric Paddles | Reusable external adult paddles (pediatric paddles integrated) | |
|
Battery Description
|
Standard Type | Li-ion battery Li1104c 11.1Vdc 4000mAh X2 |
| Standard Capacity | Up to 10 hours ECG monitoring or 60 full-energy discharges | |
| Low Battery Indicator | Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on | |
| Recharge Rate | 80% in 3 hours. 100% in 5 hours | |
|
Built-in Recorder
|
Paper | 50mm thermal |
|
Printing Method
|
High-resolution, thermal print head | |
| Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform | ||
|
Print mode
|
HR exceed limits alarm recording | |
| Auto timed recording | ||
| Real-Time Recording | ||
| Defibrillation discharge trigger recording | ||
|
Power
|
AC-DC dual-use | Use the batteries, AC 100V~240V, 50/60Hz |
| Vehicle Voltage (Option) | DC 12V | |
With its dual AC-DC power system, the YR06111 adapts to different environments and needs. Its lithium-ion battery provides up to 10 continuous hours of monitoring or 60 maximum-power discharges, offering a reliable and practical solution for critical situations. The integrated thermal printer records key real-time data, such as heart rate, energy provided, and defibrillation events, ideal for thorough monitoring.
Market Price
The YR06111 Veterinary Defibrillator Monitor typically ranges between 4,500 and $6,500, depending on the region and supplier. This price range reflects the device’s capability to respond in emergency situations, its durability, and compatibility with veterinary standards. At Kalstein, we understand the importance of cost in decision-making for veterinary clinics, so we offer financing options and personalized advice to facilitate purchasing this equipment.
Frequently Asked Questions
How long does it take to charge the defibrillator to maximum energy?
The defibrillator charges in less than 10 seconds to reach 360 joules, allowing rapid response in emergencies.
Is the device portable?
Yes, its lithium-ion battery and dual power option (AC and vehicle) make it easy to use in various settings, including emergency vehicles.
Is it compatible with pediatric patients?
Yes, the YR06111 includes reusable paddles with integrated adapters for pediatric and adult use, enhancing its versatility.
How does it indicate low battery?
The monitor displays a flashing low battery icon, and a battery indicator light appears on the front panel.
Can it be used with electrosurgical devices?
Yes, the device is protected against interference generated by electrosurgical devices, ensuring safe operation in surgical settings.
How many printing modes does the recorder offer?
The printer allows automatic, real-time, and event-triggered recording modes, ideal for documenting critical cases.
Advantages and Disadvantages
Advantages:
-
Biphasic technology for effective defibrillation.
-
High-resolution color display for monitoring critical data.
-
Long-lasting battery with fast-charging capability.
-
Compatibility with both pediatric and adult patients.
-
Protection against electrosurgical interference.
-
Synchronized and asynchronous defibrillation modes.
-
Vehicle power option for emergency response.
-
High-precision thermal printer for detailed record-keeping.
Disadvantages:
-
Its price may be high for clinics with tight budgets.
-
Requires periodic maintenance for ECG and printer accuracy.
-
Battery, though durable, may need replacement after intensive use.
Field Use
The YR06111 Veterinary Defibrillator Monitor is commonly used in veterinary clinics and hospitals, where having reliable and responsive life-support equipment is essential. In emergency situations, the speed at which this device charges and delivers energy is critical for saving lives. Additionally, its ECG monitoring functionality allows veterinary staff to track patient status in real-time, making the YR06111 a trusted choice for high-performance veterinary clinics. Its robust design and capability for vehicle use make it an indispensable tool in emergency scenarios both inside and outside clinical facilities.
Recommendations
To maximize the lifespan and performance of this defibrillator monitor, regular maintenance is recommended, as well as periodic checks on battery status. It is also advisable to train staff in using the different defibrillation and ECG monitoring modes, ensuring they can fully utilize the device’s advanced features in emergency situations. At Kalstein, we recommend that users seek advice for the initial setup and configure alarms and energy parameters appropriately for optimal use.
Interested in equipping your clinic with this advanced defibrillator monitor? Request a quote through our Kalstein Plus platform to obtain a personalized price and access financing. Our team is here to help you find the best solution for your monitoring and defibrillation needs.
