Description

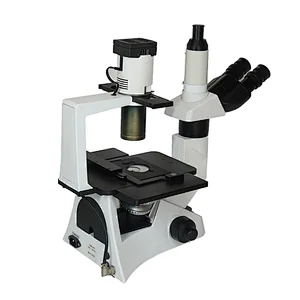

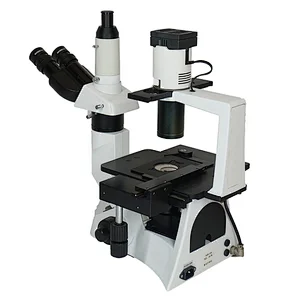

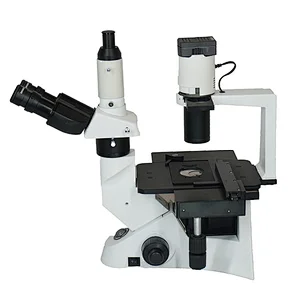

The Inverted Trinocular Microscope YR0230 is an advanced optical device designed to observe transparent and live specimens in culture utensils. Equipped with an Infinity Optical System and Extra Wide Field Eyepieces EW10x/22mm with a high eye point, it promises a seamless viewing experience. Its Seidentopf trinocular head, inclined at 30 degrees, along with the adjustable interpupillary and diopter settings, ensure comfort and precision for extended use. Ideal for researching the structure of living specimens and liquid deposits, this microscope delivers robust performance for laboratory settings.
Market Price
The pricing for the Inverted Trinocular Microscope YR0230 varies based on distributor and optional accessories but generally ranges from $3,000 to $5,000. The price reflects the advanced features and robust construction of the microscope, making it a worthy investment for serious researchers and laboratories.
Frequently Asked Questions
What types of specimens can be observed with this microscope? This microscope is perfect for observing transparent and living specimens in culture bottles and utensils.
Does it come with a warranty? Yes, a standard warranty period is included, providing peace of mind for your investment.
Advantages and Disadvantages
The major advantages of the Inverted Trinocular Microscope YR0230 include its superior optical quality, long working distance objectives, and phase contrast capabilities. However, its advanced features may not be necessary for basic observational needs, and its price might be higher compared to entry-level models.
Field Use
In practical scenarios, this microscope is utilized in biological laboratories for studying cell cultures and live specimen structures. Its ability to view specimens in culture bottles without disruption is crucial for maintaining the integrity of samples.
Recommendations
Regular maintenance of the eyepieces and objectives will ensure continued clarity and performance. Users are encouraged to keep the microscope covered when not in use to prevent dust accumulation. For more details and to experience the benefits firsthand, generate a quote or request information through our Kalstein Plus platform today.
Features
- Infinity Optical System

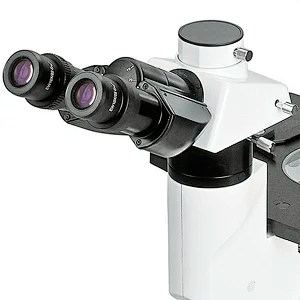

- Seidentopf Trinocular Head, 30° Inclined
- Extra Wide Field Eyepiece EW10x/22mm
- Quintuple Nosepiece
- LWD and Phase Contrast Objectives
- Coaxial Coarse & Fine Adjustment
- ELWD Condenser with NA0.3
- External Kohler Illumination
- Various Optional Accessories
Technical Specifications
| Model | YR0230 | ||
| Optical System | Infinity Optical System | ||
| Head | Seidentopf Trinocular Head, 30° Inclined, | ||
| Interpupillary 48~75mm, Diopter Adjustable | |||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, High Eye point | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan LWD Achromatic Objective | 4x/0.1, W.D.18mm | |
| 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm | |||
| Infinity Plan Phase Contrast Achromatic Objective | PH10x/0.25, W.D.10mm | ||
| PH20x/0.40, W.D.5.1mm | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per | ||
| Rotation | |||
| Working Stage | Plain Stage 160*250mm | ||
| –Glass Insert Plate | |||
| –Auxiliary Stage 70*180mm | |||
| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser | ||
| Phase Contrast | –Centering Telescope, Tube Dia.30mm | ||
| –Phase Contrast Slide, 2 Holes For 10x-20x Objective | |||
| Filter | Green, Blue, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ||
| Inverted Laboratory Biological Microscope Optional Accessories | |||
| Objective | Infinity Plan LWD Achromatic Objective | 10x/0.25,W.D.10mm | YR0230-op1 |
| 20x/0.4,W.D.5.1mm | YR0230-op2 | ||
| Phase Contrast | Infinity Plan Phase Contrast Achromatic Objective | PH40x/0.6,W.D.0.35mm | YR0230-op3 |
| Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective | YR0230-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0230-op5 | |
| Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It | |||
| Is Most Comfortable, Tightness Adjustable | |||
| Terasaki Holder, Inner Holding Size 56x88mm | YR0230-op6 | ||
| Petri Dish Holder Dia.38mm | YR0230-op7 | ||
| Slide Glass Holder Dia.54mm | YR0230-op8 | ||
| Slide Glass Holder Dia.90mm | YR0230-op9 | ||
| Adapter | Photo Adapter | YR0230-op10 | |
| C-Mount 1.0x | YR0230-op11 | ||
| C-Mount 0.45x | YR0230-op12 | ||
| Fluorescent | Fluorescent Attachment | YR0230-op13 | |
