In laboratories and veterinary clinics, sterilizing instruments is crucial to ensuring safety and efficiency during procedures. The Pulsed Vacuum Autoclave YR05688/YR05691 is an advanced solution offering fast and efficient sterilization, perfect for environments where precision and time are essential. With innovative features such as an automatic lifting door and a vacuum drying system, this autoclave is designed to meet the demanding needs of the sector. Below, we provide a detailed description of its features, advantages, and recommendations for use.

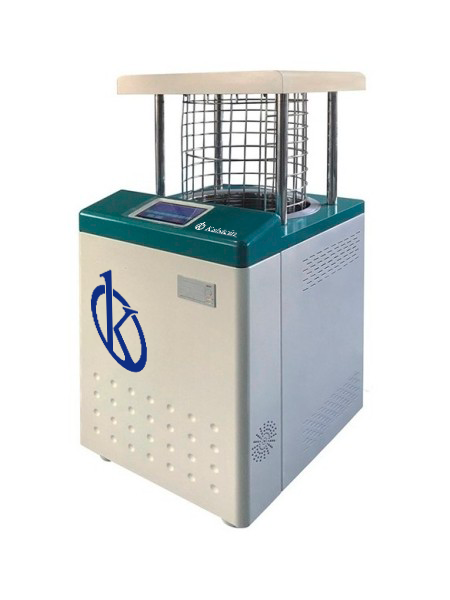

The Pulsed Vacuum Autoclave YR05688/YR05691 is a highly efficient sterilization device with a working temperature range from 105 to 134 ºC. Its pulsed vacuum technology improves steam penetration, ensuring thorough sterilization even for porous or packaged materials. It is available in various models with capacities ranging from 60L to 120L, making it suitable for the specific needs of different clinics and laboratories.
This autoclave is ideal for sterilizing liquids, instruments, textiles, rubber, and more, with user-defined sterilization programs, such as vacuum leak test and Type B and D tests. Its separate steam generator and vacuum pump provide reliable and consistent performance. The color LCD touchscreen allows easy and intuitive control of all settings, while the vacuum drying system ensures that instruments are ready for use immediately after the cycle.
Technical Specifications:
| Model | YR05688 | YR05689 | YR05690 | YR05691 |
| Max. Working pressure | 0.23Mpa | |||
| Working pressure | 0.22Mpa | |||
| Working temperature range | 105 – 134℃ | |||
| Vacuum rate | -0.081Mpa | |||
| Accuracy of temperature display | 0.1℃ | |||
| Sterilization time | 0 – 99 min | |||
| Drying time | 0 – 99 min | |||
| Heat average | ≤±1℃ | |||
| Type | Vertical Pulsating Vacuum Autoclave | |||
| Class | Class B | |||
| Control | Microprocessor | |||
| Door | Automatic lifting door | |||
| Display | LCD color touch screen display | |||
| Drying system | Vacuum drying | |||
| Steam generator | Separate steam generator | |||
| Vacuum pump | Yes | |||
| Sterilization program | Liquid, Instrument, Textile, Rubber, User-defined, Vacuum leakage test, B & D test | |||
| Water tank | Yes | |||
| Printer | Yes | |||
| Sterilization box | 2 PCS | |||
| Language | English | |||
| Voltage | 220V, 50Hz, single-phase | |||
| Chamber Size(mm) | 60L / Ø396×490 | 80L / Ø396×650 | 100L / Ø480×560 | 120L / Ø480×660 |
| Outer Size(mm) | 686×556×913 | 686×556×1035 | 840×600×970 | 840×600×1060 |
| Packing Size(mm) | 786×656×1013 | 786×656×1135 | 940×610×1000 | 940×610×1075 |
| G.W. / N.W. | 210/180 kg | 230/200 kg | 300/270 kg | 325/ 295 kg |
| Power | 5.4 KW | 5.4 KW | 6.0 KW | 6.0 KW |
Market Price
The price of the YR05688/YR05691 pulsed vacuum autoclaves varies depending on size and additional features. On the market, 60L models typically start at around $9,000 to $12,000 USD, while larger versions (up to 120L)
What type of instruments can I sterilize with this autoclave?
The YR05688/YR05691 autoclave is ideal for sterilizing surgical instruments, textiles, rubber, liquids, and other medical equipment. Its versatility allows it to be used in a wide range of applications.
How long does the sterilization process take?
The sterilization time varies depending on the selected program, but generally ranges from 0 to 99 minutes, allowing you to adapt the cycle to specific material needs.
Is the autoclave difficult to operate?
No, the YR05688/YR05691 autoclave features a user-friendly color LCD touchscreen, making it easy to operate. Additionally, its automated controls make the process intuitive and straightforward.
Is this model suitable for veterinary clinics?
Yes, due to its ability to sterilize a variety of materials and its high efficiency, the autoclave is perfect for veterinary clinics that require fast and safe sterilization processes.
Advantages and Disadvantages
Advantages:
-
Fast and efficient sterilization: The autoclave offers sterilization cycles that can be completed within minutes, saving time and improving laboratory or clinic productivity.
-
Automatic lifting door: Makes accessing the chamber effortless, improving ergonomics and safety.
-
Vacuum drying system: Ensures that instruments are fully dried and ready for immediate use.
-
Versatility: Predefined programs and the option for custom settings make the autoclave suitable for a wide range of materials.
Disadvantages:
-
Initial cost: The price of larger models may be higher compared to smaller or less feature-rich autoclaves.
-
Requires maintenance: Like all autoclaves, it requires regular maintenance to ensure optimal operation.
Product Use in the Field
The Pulsed Vacuum Autoclave YR05688/YR05691 is widely used in hospitals, veterinary clinics, research laboratories, and healthcare centers. In veterinary clinics, this autoclave is ideal for sterilizing surgical instruments, syringes, bandages, and medical equipment that needs to be used safely and efficiently between patients. The pulsed vacuum technology is particularly useful for sterilizing delicate or porous materials, such as rubber or textiles, which require thorough sterilization without damage.
Recommendations
To maximize the performance of the Pulsed Vacuum Autoclave YR05688/YR05691, it’s essential to follow the user manual and perform regular maintenance. This includes cleaning the chamber and filters, checking the valves and vacuum system, and calibrating the equipment periodically to maintain sterilization accuracy.
If you’re looking for an efficient sterilization solution for your laboratory or clinic, this autoclave offers excellent value for money and advanced features that make it ideal for maintaining high hygiene standards.
