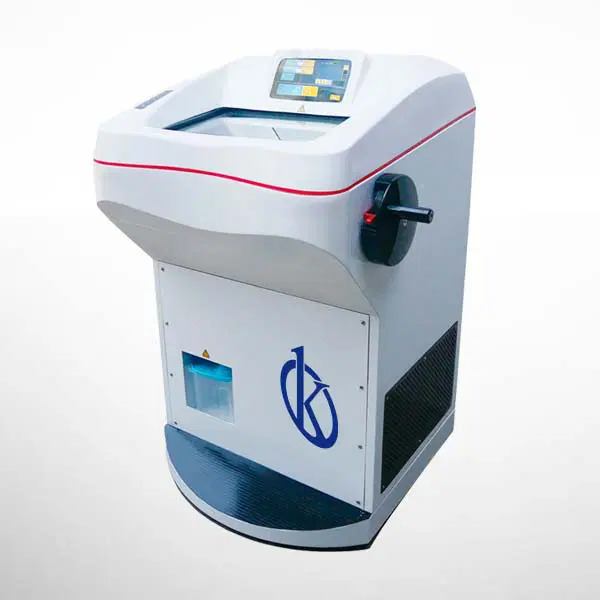

The Rotary Cryostat Microtome YR426-1 is a high-precision device designed for sample preparation in histology and pathology laboratories. This equipment allows for ultra-thin sectioning of frozen tissues, ensuring optimal results in microscopic studies. Thanks to its advanced technology, it provides precise temperature control and intuitive operation, making it an indispensable tool for professionals in the field.
Features and Technical Specifications
This cryostat model is equipped with a state-of-the-art cooling system that maintains a stable temperature to preserve sample integrity. Additionally, its rotary cryostat mechanism optimizes cutting precision, allowing for a more ergonomic and efficient handling experience.
Technical Specifications
| Model | YR426-1 |
| Chamber Temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
| Section thickness range | 0.5μm～100μm Adjustable 0.5μm～5μm Increment0.5μm 5μm～20μm Increment1μm 20μm～40μm Increment2μm |
| Trimming thickness range | 10μm～600μm Adjustable 10μm～50μm Increment5μm 50μm～100μm Increment10μm 100μm～600μm Increment50μm |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
Market Price
The price of the Rotary Cryostat Microtome YR426-1 varies depending on the supplier and any additional configurations included. In the current market, this type of equipment ranges from $8,000 to $15,000 USD, depending on the brand, advanced features, and after-sales service provided. Kalstein stands out for offering competitive prices and exceptional customer service, ensuring a smart investment for your laboratory.
Frequently Asked Questions
-
What is the minimum temperature the cryostat can reach?
-
The YR426-1 can cool down to -35°C, allowing optimal preservation and handling of samples.
-
Does it require frequent maintenance?
-
It is recommended to perform periodic cleaning and calibration to ensure optimal operation and extend the equipment’s lifespan.
-
Is it easy to operate?
-
Yes, its intuitive digital display and ergonomic design make it easy to use, even for inexperienced users.
-
Can it be used for different types of tissues?
-
Yes, the rotary cryostat microtome is suitable for a wide variety of tissues in histology and pathology studies.
-
Does Kalstein offer a warranty for this equipment?
-
Yes, all Kalstein equipment includes a warranty and specialized technical support to resolve any issues.
Advantages and Disadvantages
|
Advantages |
Disadvantages |
|
High precision in cutting |
High price for some budgets |
|
Stable temperature control |
May require training for optimal use |
|
Ergonomic and easy-to-use design |
Requires a controlled environment to prevent thermal variations |
|
Compatible with different blade types |
Requires periodic maintenance |
|
Intuitive digital display |
Heavy weight, limiting mobility |
|
Low noise level during operation |
Limited availability in some markets |
|
Capacity to store multiple samples |
Some advanced functions may require additional accessories |
|
Warranty and specialized technical support |
Product Application in the Field
The Rotary Cryostat Microtome YR426-1 is widely used in research laboratories and hospitals for disease diagnosis and tissue analysis. Its ability to produce ultra-thin sections allows specialists to observe cellular structures in great detail, facilitating pathology identification.
Additionally, its rotary design optimizes efficiency in sample handling, allowing for smoother and more precise movement of the tissue block. It is also employed in biomedical research, where cutting precision is essential for obtaining reliable results in molecular and genetic studies.
Laboratories requiring rapid biopsy analysis find this equipment to be an efficient solution, significantly reducing sample processing time without compromising result quality.
Recommendations
To maximize the performance of the Rotary Cryostat Microtome YR426-1, follow these best practices:
-
Proper Placement: Install the equipment in a controlled environment to avoid temperature fluctuations.
-
Regular Maintenance: Clean and disinfect the cutting chamber after each use to prevent contamination.
-
Operator Training: Ensure that operators are familiar with the equipment’s use and calibration to achieve maximum precision.
-
Use of High-Quality Blades: Utilize premium blades to ensure clean cuts without sample alterations.
The Rotary Cryostat Microtome YR426-1 is a strategic investment for any laboratory seeking precision, efficiency, and reliability in sample preparation.
